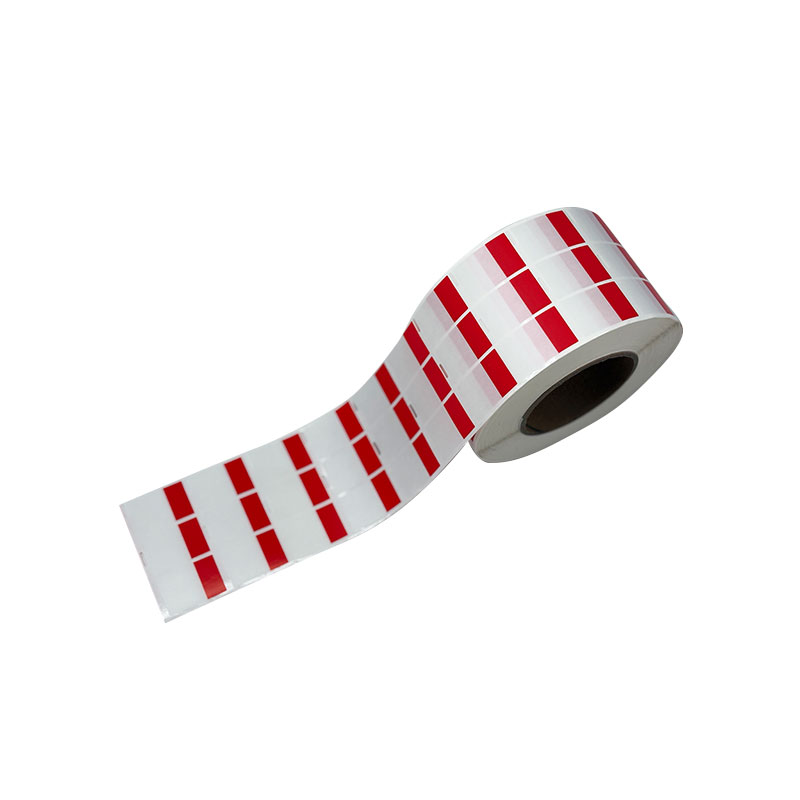

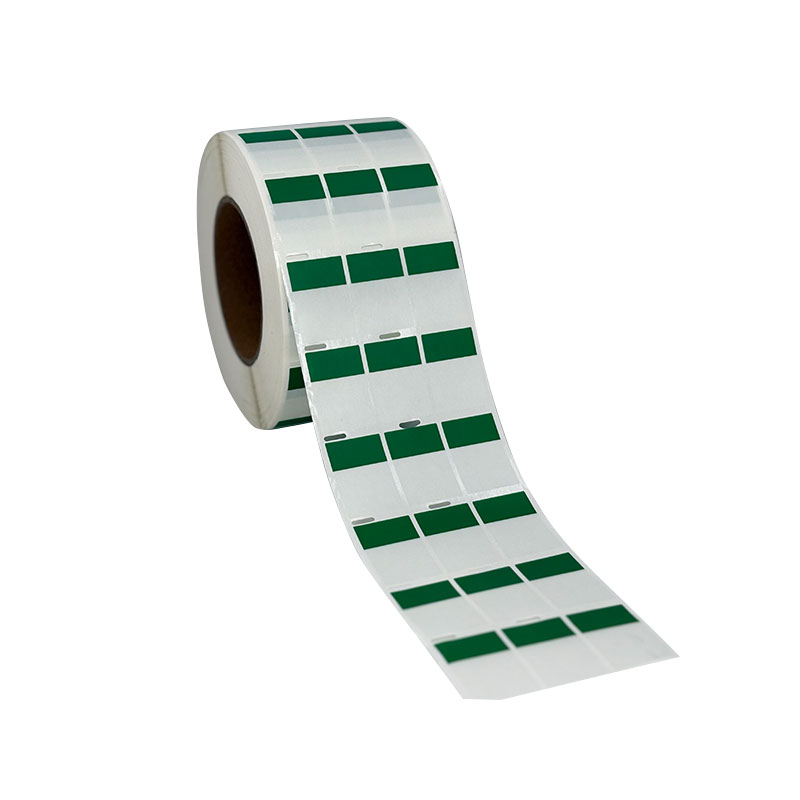

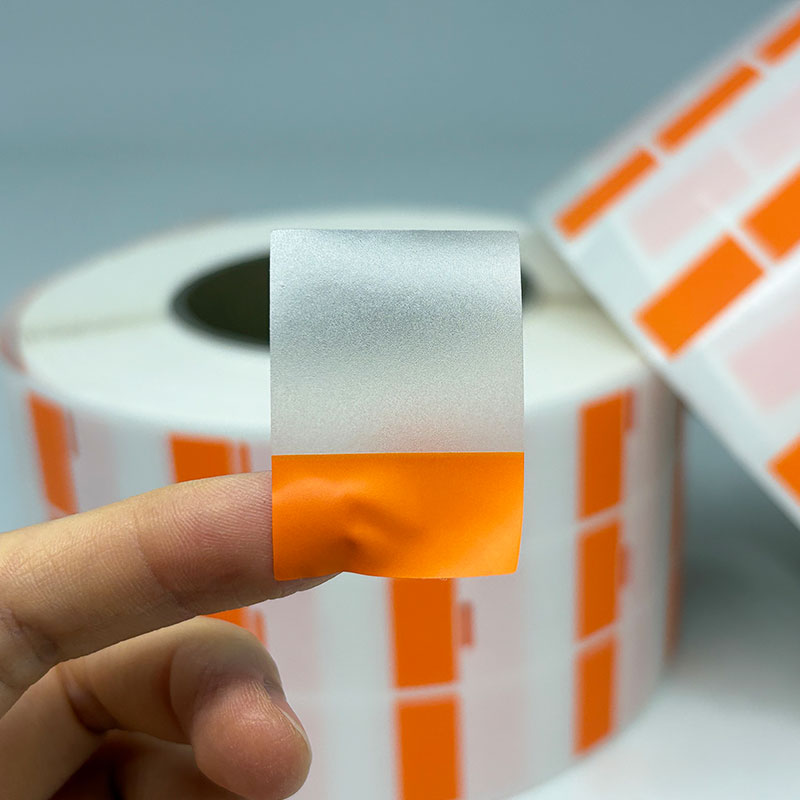

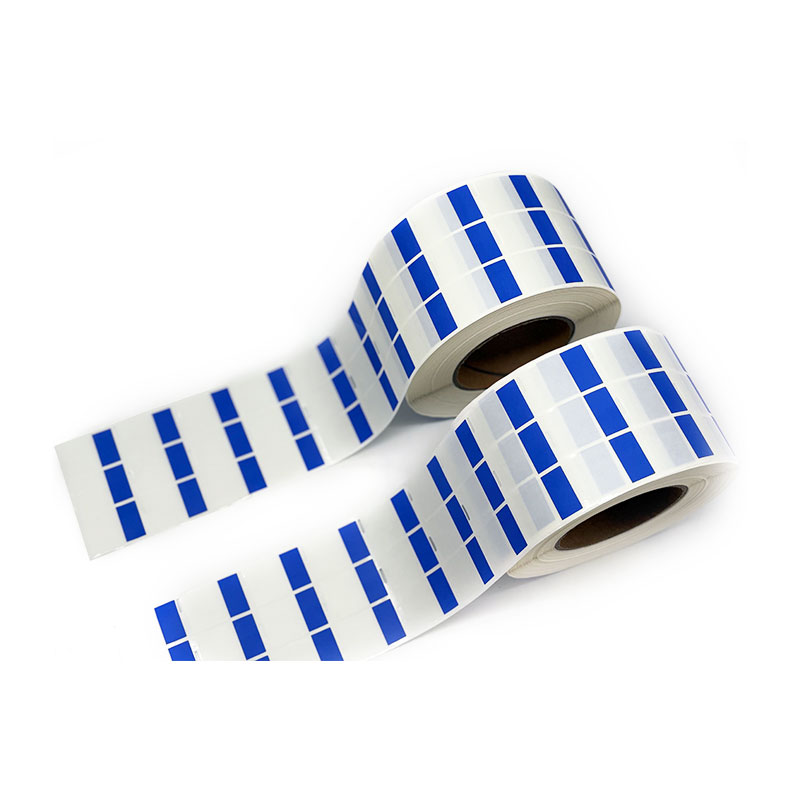

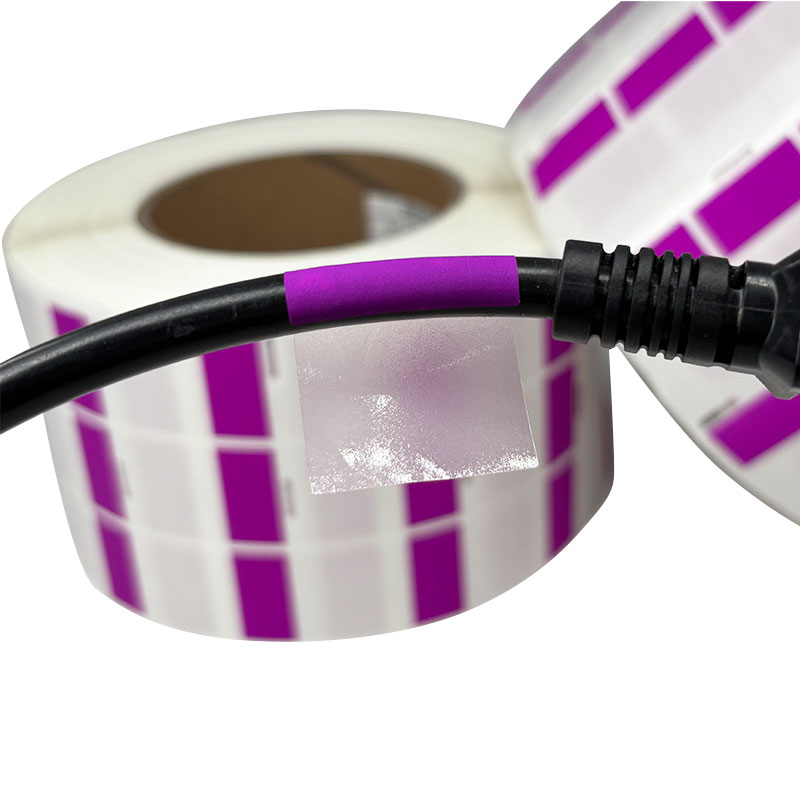

B-674G is the optimal material designed for cable labeling. It is a durable tape with acrylic pressure-sensitive adhesive and transparent ethylene film, featuring a protective cover. A white blank area is left for heat transfer printing. For better print quality, it is recommended to use TR4032B dedicated ribbons or other resin-based series ribbons for heat transfer printing. This material has a uniform appearance, is transparent, and offers excellent water and oil resistance.
Constitute
Detailed rules and regulations
physical characteristics | test method | Average test results |
thickness | ASTM D1000 Testing -Vinyl substrate -Pressure-sensitive adhesive -Off-form paper -amount to | 0.06 mm 0.023 mm 0.074 mm 0.16 mm |
Paste to: -stainless steel | ASTM D1000 Testing Paste for 20 minutes Stick for 24 hours | ≥1900gf/inch ≥2000gf/inch |
-Initial adhesion -Hold adhesion | ASTM D2979 Testing ASTM D3654 Testing | 430g 310g(18.7oz) |
-light transmittance | ISO7686:2005 | 90% |
-fog level | ISO7686:2005 | 45% |
insulativity | ASTM D1000 Testing | 6000V |
inflammability | ASTM D1000 Testing Average burning time | Less than 10 seconds |
Function test method:
Use TR4032B series black color strip heat transfer printing sample tape.
function | test method | test result |
Maximum adaptation temperature | 70°C for 30 days | has/have no influence |
Maximum adaptation temperature | -40°C for 30 days | has/have no influence |
Moisture resistance | 37 ° C (100 ° F), relative humidity 95% for 30 days | has/have no influence |
ageing resistance | 30 days xenon arc aging test machine, one cycle | has/have no influence |
Chemical test
chemical reagent | Visual observation affects | |
Base material/adhesive | carbon tape | |
Cleaners and solvents | ||
isopropanol | No visible effects | No visible effects |
mineral spirits | No visible effects | No visible effects |
Northwoods TM Buzz Saw Terpene Cleaner | No visible effects | No visible effects |
deionized water | No visible effects | No visible effects |
Fuel, oil and lubricants | ||
gasoline | Slight lifting | No visible effects |
brake fluid | No visible effects | No visible effects |
SAE 30 WT Oil at 70°C | No visible effects | No visible effects |
Yellow 77 Lubricating oil | No visible effects | No visible effects |
Aerospace liquids | ||
JP-8, space fuel | No visible effects | No visible effects |
Skydro 500B-4 | Material damage | NA |
MIL-H-5606 | No visible effects | No visible effects |
Unless otherwise noted, tests are performed after 24 hours at room temperature. The test consists of five cycles, soaking in the specified test fluid for 10 minutes, then removing and placing for 30 minutes before testing. B-674G is not recommended for use in harsh organic solvents such as methyl ethyl ketone, acetone, or 1,1,1-trichloroethane.
Term of validity
The product can be stored for at least 1 year (from the date of receipt) in an unopened environment with room temperature 15 ° C-23 ° C and relative humidity 60%.
