Product Properties

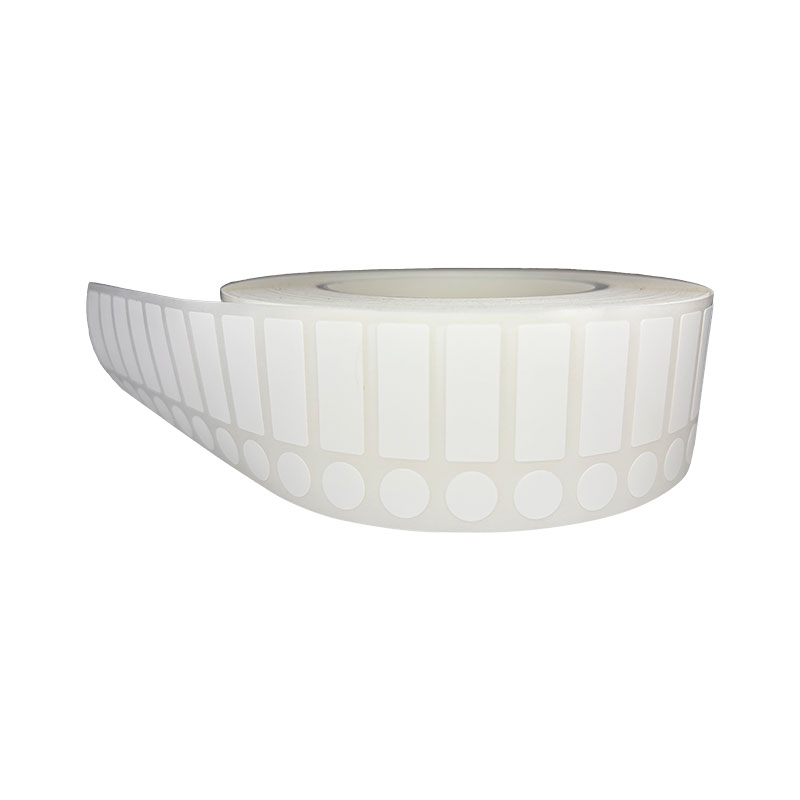

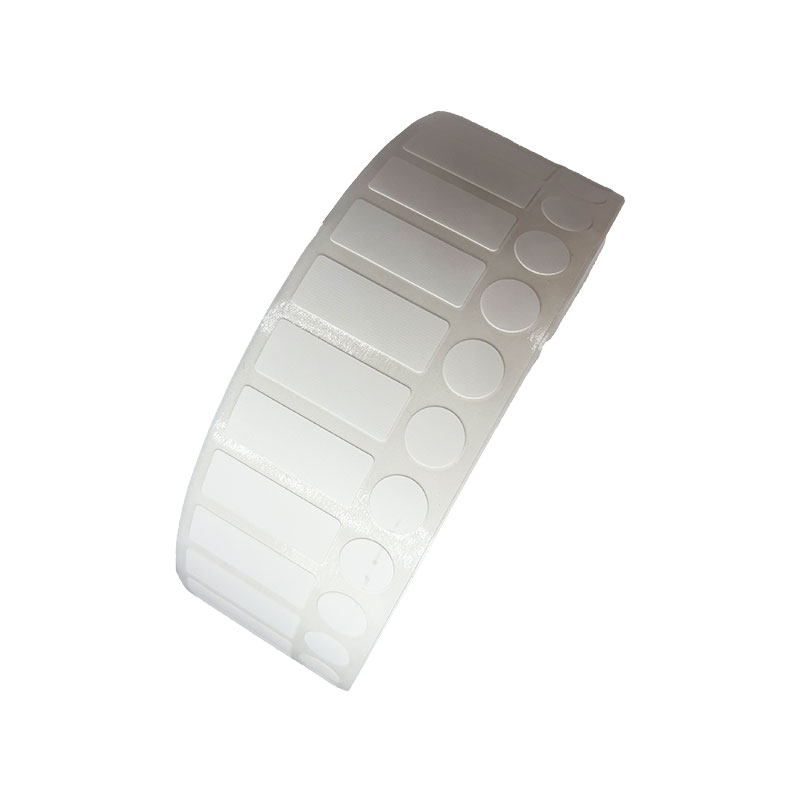

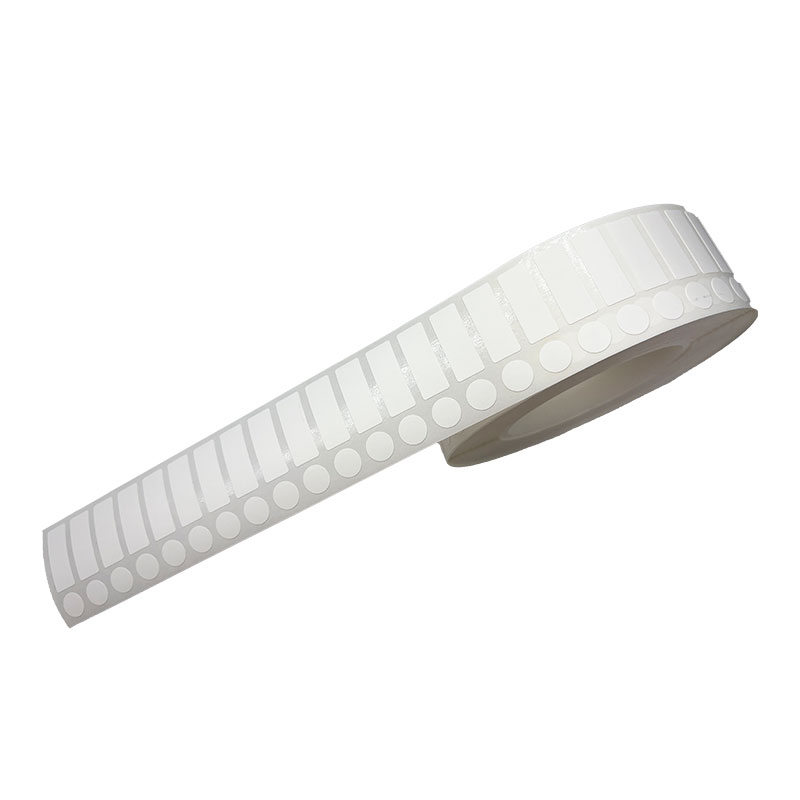

B-364G is a nylon film with a permanent pressure sensitive acrylic adhesive and a high opacity, matte white colored topcoat specifically designed for thermal transfer, dot matrix or write-on printing.
Product Applications

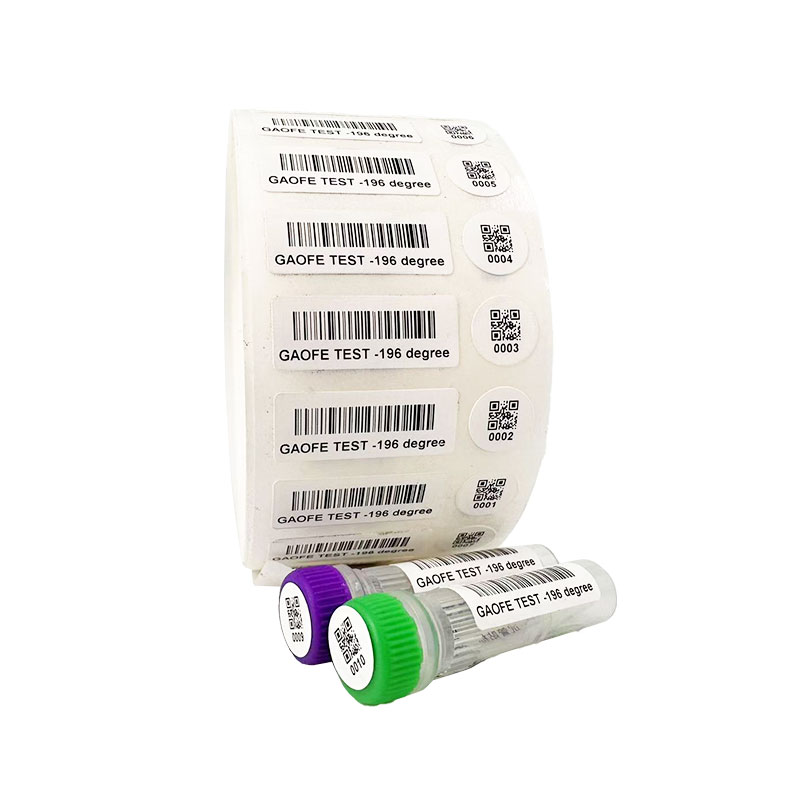

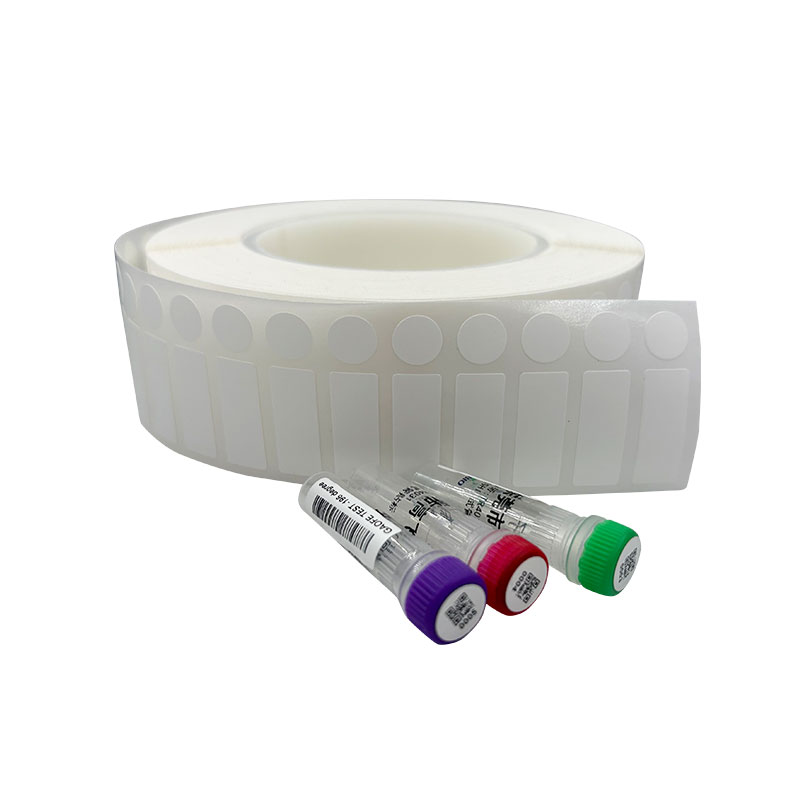

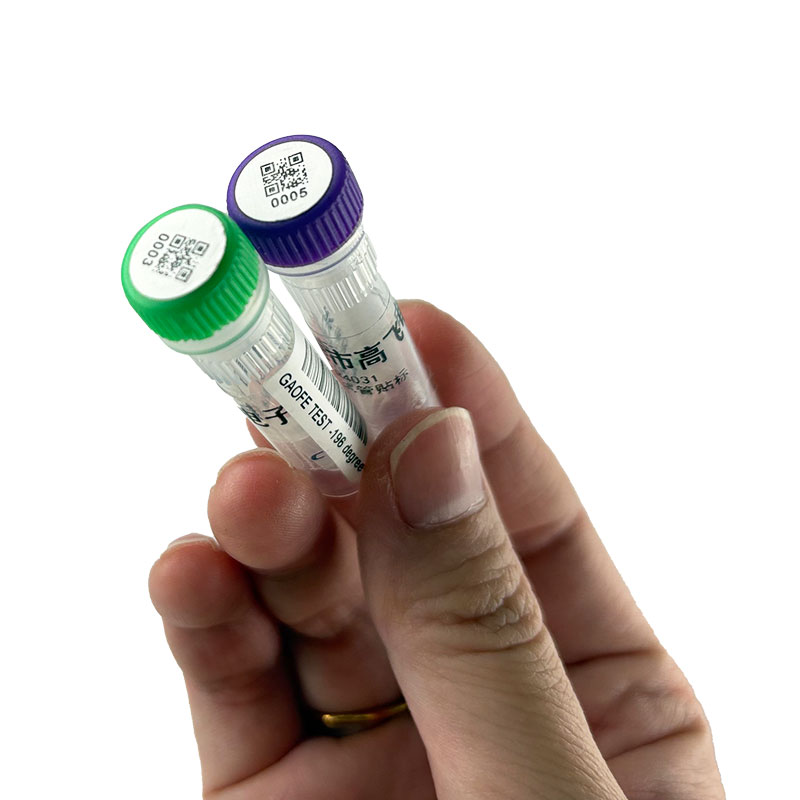

B-364G is designed for barcode or alphanumeric identification of wire and cable marking, Vial or slide labeling for laboratory identification ,General label applications where the part has a curved or contoured surface. M-9301 is particularly useful in manufacturing processes where dimensional stability of the label is critical.
Exposure Data
Thickness | ASTM D1000 | USA Units | SI Units |
Substrate | 0.0046 inch | 0.117 mm | |
Adhesive | 0.0010 inch | 0.025 mm | |
Total | 0.0056 inch | 0.142 mm |
Technical Data
Properties | Test Method | Average Results | |
USA Units | SI Units | ||
Adhesion | |||
Stainless Steel | 20 minute dwell | ≥44 oz/in | 48N/100 mm |
24 hour dwell | ≥76 oz/in | 86N/100mm | |
Tack | |||
≥1000 g/in | |||
Weatherometer Testing | ASTM G154 | No Visible Effect | |
Short Term High Temperature | 5 minutes at 145°C | Slight discoloration | |
Long Term High Temperature | 30 days 110°C | No Visible Effect | |
Short Term Cold Temperature | 1 hour liquid Nitrogen At -196°C | No Visible Effect | |
Long Term Cold Temperature | 30 days at -80°C | No Visible Effect | |
Temperature Range | -196 to 145℃ | ||
Durability Testing
Adhesive Performance Property | Chemical Resistance | |
Chemical Re-agent | Subjective Observation of Visual Change | |
Effect label-Stock/adhesive | Dot matrix print | |
Methel Ethyl Ketone | Complete unwrap | No visible effect |
1,1,1-Trichloroethane | Complete unwrap | No visible effect |
Isopropyl Alcohol | Complete unwrap | No visible effect |
Mineral spirits | Slight unwrap | No visible effect |
SAE 20 WT oil at 70°C | No unwrap,label stained tan | No visible effect |
Mil 5606 oil | No unwrap,label stained red | No visible effect |
Gasoline | Complete unwrap,label discolored | No visible effect |
Rust Veto®342 | No unwrap,label discolored | No visible effect |
De-ionized water | No visible effect | No visible effect |
3% Alconox ® Detergent | No visible effect | No visible effect |
10%Sulfuric acid solution | No visible effect | No visible effect |
10%Sulfuric acid solution | No visible effect | No visible effect |
Buzz saw degreaser | Complete unwrap | No visible effect |
S-KUT Cutting oil 332 | No unwrap,label stained red | No visible effect |
5% salt solution | No visible effect | No visible effect |
Chemical Testing
Chemical Re-agent | Ricoh B110A-Thermal transfer ribbon | Ricoh B110C-Thermal transfer ribbon | Iimak SP330-Thermal transfer ribbon | Dai Nippon R510Thermal transfer ribbon |
Methel Ethyl Kerone | Slight print smear | Severe print smear | Severe print smear | Severe print smear |
Isopropyl alcohol | Slight print removal | Severe print smear | Severe print smear | Severe print smear |
Mineral Spirits | No visible dffect | Moderate print removal | No visible effect | No visible effect |
SAE WT Oil at 70°C | No visible effect | No visible effect | No visible effect | No visible effect |
Mil 5606 oil | Slight print smear | Slight print removal | No visible effect | No visible effect |
Gasoline | Slight print smear | No visible effect | No visible effect | No visible effect |
Rust Veto ®342 | No visible effect | No visible effect | No visible effect | No visible effect |
10% Sodium Hydroxide solution | No visible effect | No visible effect | No visible effect | Slight print smear |
10% Sulfuric Acid solution | Slight print smear | Severe print removal | Moderate print removal | Moderate print removal |
Buzz saw degreaser | No visible effect | Severe print removal | Moderate print removal | Moderate print removal |
S-kutt cutting oil 332 | No visible effect | No visible effect | No visible effect | No visible effect |
5% salt solution | No visible effect | Severe print removal | No visible effect | Slight print smear |
Product Approvals
UL"Recognised Component"
Underwriters laboratories Test Standard: UL969 Marking and labelingsystems
Product Categories: PGGU2-Materials File NO.xxx
Label Application
The surface to be labelled should be clean and dry.In order to optimise
label application,surface temperatures should be around room temperature.
Storage Conditions
Label material and labels manufactured from this material should be kept inplastic bags and stored at room temperature conditions(approx 23C and50%RH)
Shelf Life
If stored under recommended conditions,then this label material will retainit's specified performance criteria for 2years.
ROHS Compliance
With respect to European(EU)Directive 2002/95/EC on the restriction of theuse of certain hazardous substances (ROHS) in electrical and electronicequipment, MINGMA identification products can clearly state that our products do notcontain any of the concerned substances in excess of the maximumconcentration values in any homogeneous material.
Warranty & Limited liability
Important Notice To Purchaser:All statements,technical information and recommendations herein are based on tests webelieve to be reliable,but the accuracy or completeness thereof is not guaranteed, and the following is made in lieu of all warranties,expressed or implied,including the implied warranties,of merchantability and fitness for purpose: Seller's and manufacturer's only obligation shall be to replace such quantity of the product proved to be defective. Before using., user shalldetermine the suitability of the product for its intended use, and user assumes all risk and liability whatsoever in connection therewith. Neither seller nor manufacturer shall be liable either in tort or in contract for anyloss or damage,direct or indirect,incidental, or consequential, arising out of the use of or the inability to use the product. No statement or recommendation not contained herein shall have any force or effect in an agreement signed by officers of seller or manufacturer.
