Product description
B-796g is a pet antistatic label with a permanent acrylic pressure-sensitive adhesive designed for heat
transfer printing. The product has electrostatic safety
Characteristic
● Good antistatic performance
● Good printing adaptability
● Consistent with RoHS
Applications:
● Printed circuit boards
● Electronic components
Performance
Performance | Test method | Typical test results |
Thickness | Tested according to ASTM d1000 |
|
| coating | 0.050±0.005mm |
| base material | 0.018±0.002mm |
| - tickness | 0.068±0.007mm |
Adhesion force Stainless steel | Tested according to ASTM d1000 Speed 300 mm/min, paste 20 min | ≥3N/inch |
|
INITLAL TACK | J. Dow test according to gb - 4852 | >1# |
Adhesion force | Tested according to GB /t - 4851 | >24H |

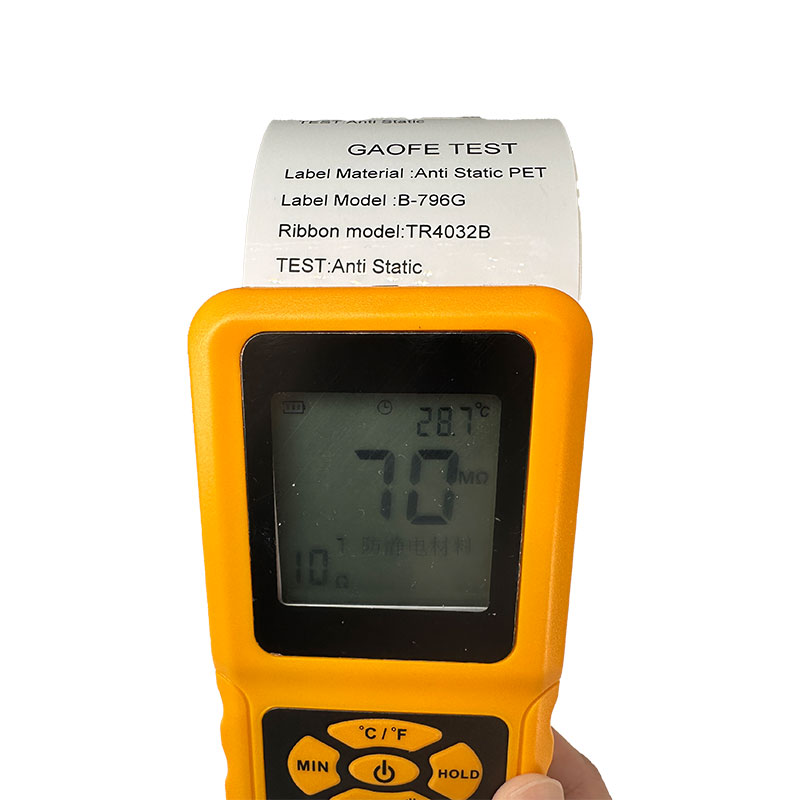

Surface resistance | EOS/ESD S.11.11 | 106−109 Ohm |
Adhesive resistance | EOS/ESD S.11.11 | 106−109 ohm |
Moving peel voltage（VOLT/square inch） | TOPLABE900 | <75V |
Note: The values listed are averages and should not be used as specific specifications. The viscosity and holding force values listed above are subject to a 10% error margin. The test data and test results contained in this document are for general information only. Customers who need to develop specifications and performance standards based on specific product applications should contact Teraray for further information.
Expiration Date:
The product can be stored unopened at 23℃, 65%RH for at least three months (calculated from the date of receipt of this product).
