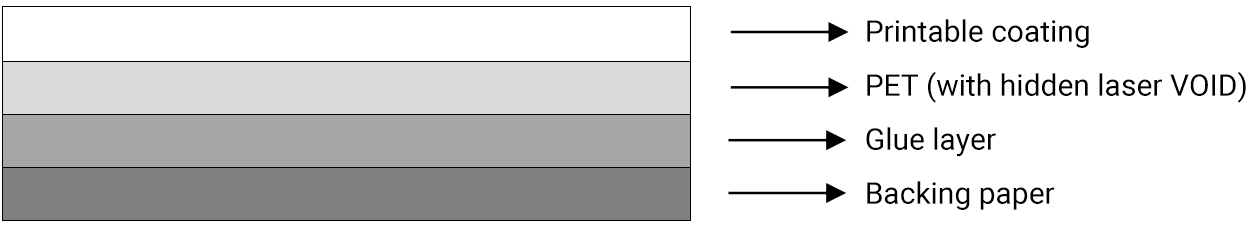

Product structure diagram
Product Structure | Material | Weight | Thickness | Color |
Printable Coating Layer | Surface Treatment Coating | 1±0.5g/㎡ | 1um±0.5um | Transparent |
PET | 25um PET (Laser VOID) | 38±1.5g/㎡ | 28±2um | Silver |
Adhesive Layer | Acrylic Pressure-sensitive Adhesive | 15±1.5g/㎡ | 15±2um | Transparent |
Release Paper | White Glassine Release Paper | 80±3g/㎡ | 70±2um | White |
Product properties
Test Item | Testing Equipment | Testing Method | Test Value Standard Range |
Peel Force of Pressure-sensitive Adhesive | 180° Micro-control Tensile Testing Machine | GB/T 2792-2014 | ≥6N/in |
Initial Tack of Pressure-sensitive Adhesive | 30° Steel Ball Sliding Testing Machine | GB/T 4852-2002 | ≥Steel Ball No. 5 |
Holding Force of Pressure-sensitive Adhesive | Normal Temperature Holding Force Testing Machine | GB/T 4851 | ＞24H |
Release Force of Release Paper | 180° Micro-control Tensile Testing Machine | GB/T 2792-2014 | 3 - 20g |

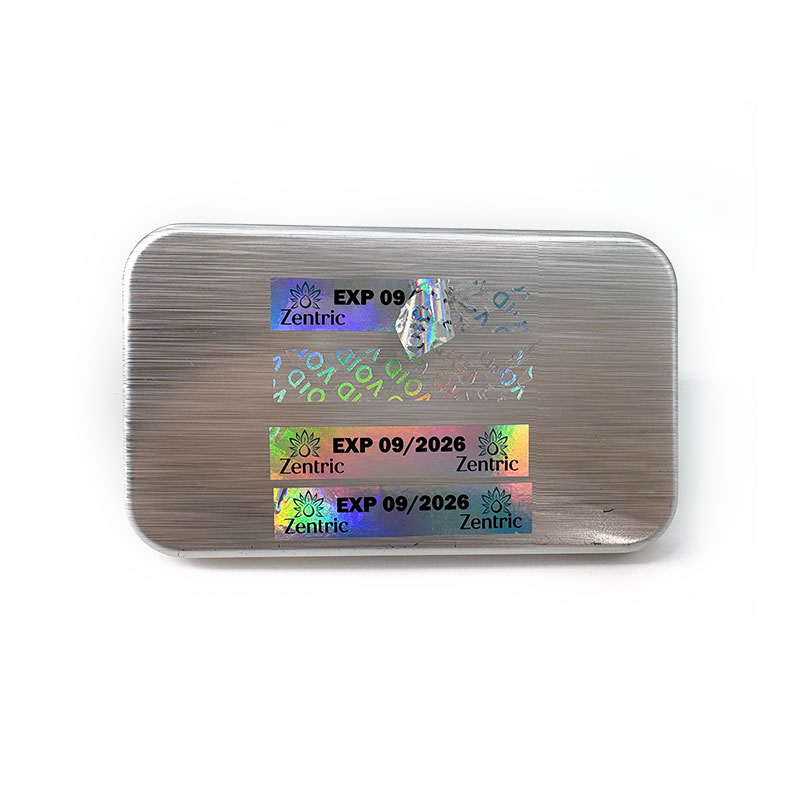

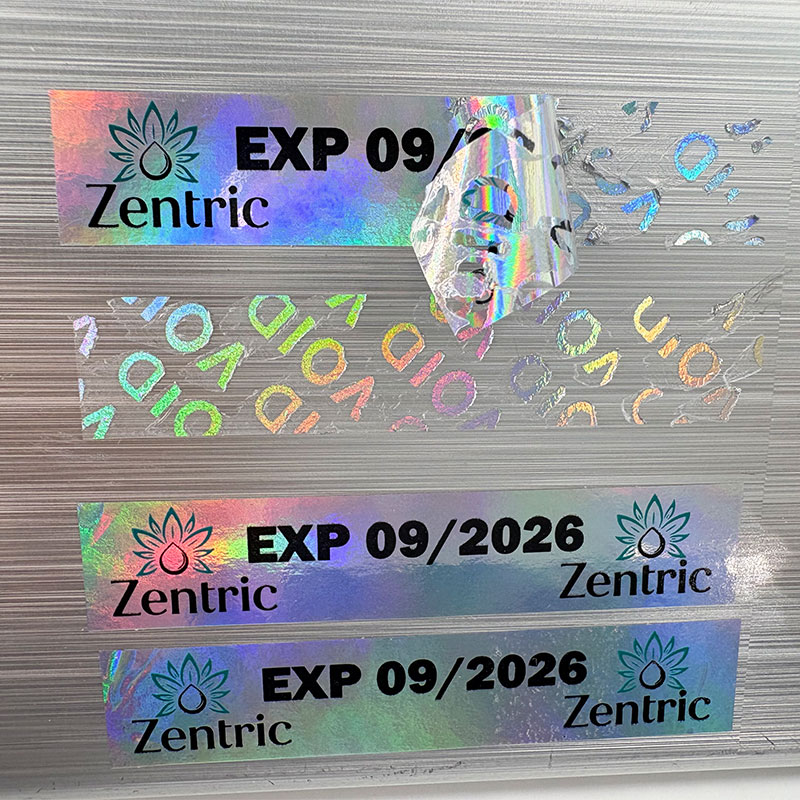

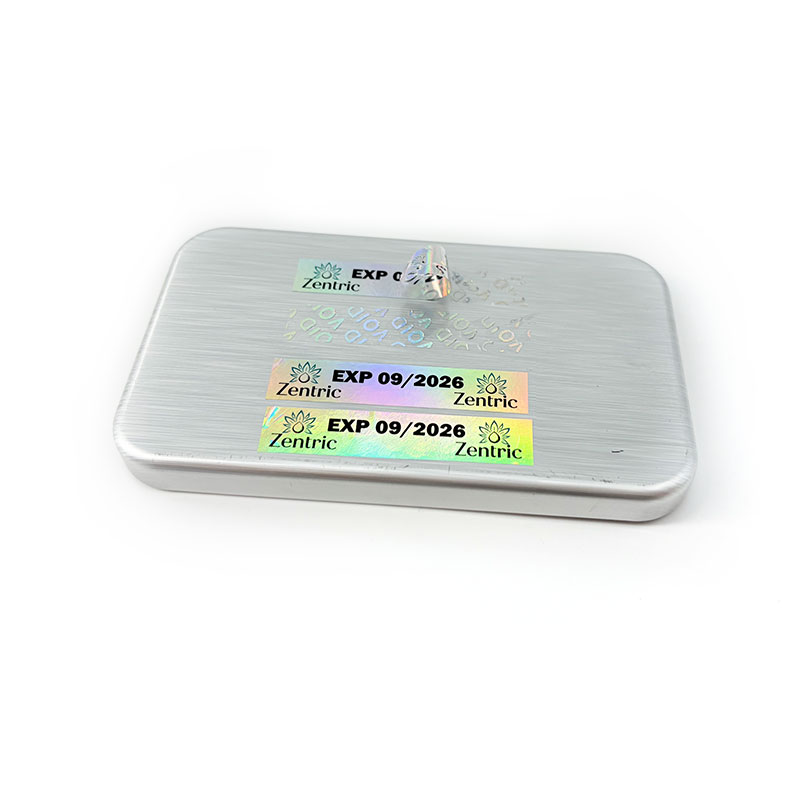

Stripping and Display Effect of the Attached Object | 180° Micro-control Tensile Testing Machine | Visual Inspection | Laser VOID Character Pattern |
Printing adaptability
The surface coating is suitable for various printing equipment and inks. Before use, the compatibility of our products with inks must be tested and confirmed.
Labeling adaptability
Under the condition of >10℃, it is suitable for self-adhesive trademark fields such as electronic products, plastic products, and paper products.
Processing adaptability
It is suitable for printing on various equipment and die-cutting with knives, but our products must be used after testing and confirmation by the company.
Storage adaptability
It can be stored for 6 months under the relative temperature/humidity of 25℃/50%RH.
