OVERVIEW

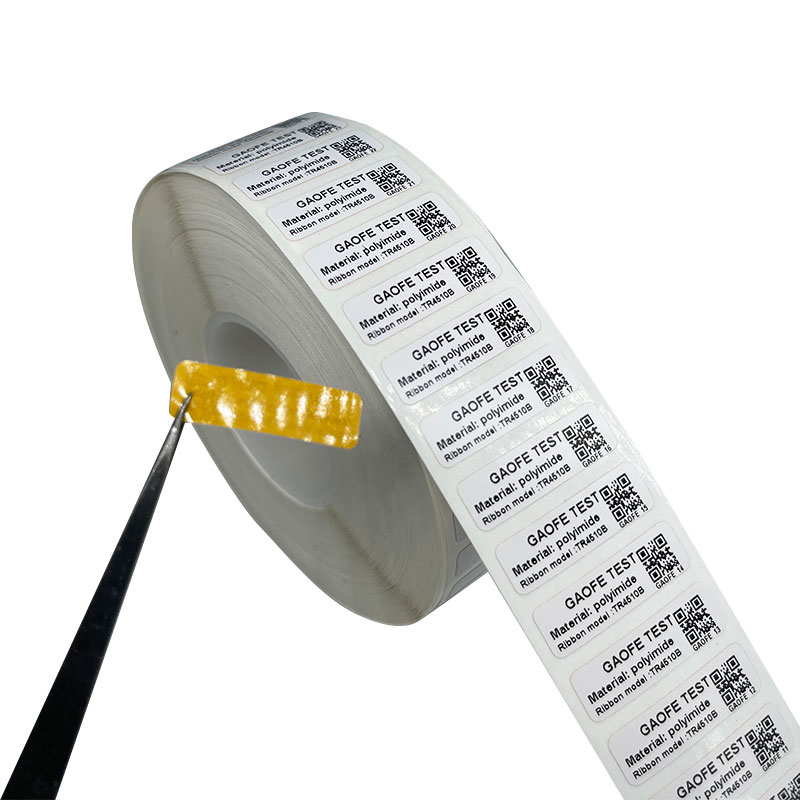

Polyimide Circuit Board labels are specially designed identification labels for printed circuit boards (PCBs) and electronic components. They maintain stable performance in high-temperature, chemically corrosive, and mechanically stressful environments, ensuring reliable traceability throughout the entire manufacturing process and product lifecycle..
Feature:
High-Temperature Resistance
Withstands 260°C–320°C during reflow soldering and wave soldering processes without warping, carbonization, or delamination.
Short-term exposure tolerance to 150°C+ ambient temperatures (e.g., automotive engine compartments).
Material Compatibility
Adhesives: Modified acrylic or silicone-based formulations ensure strong bonding to diverse PCB surfaces (e.g., FR4, aluminum substrates).
Application:

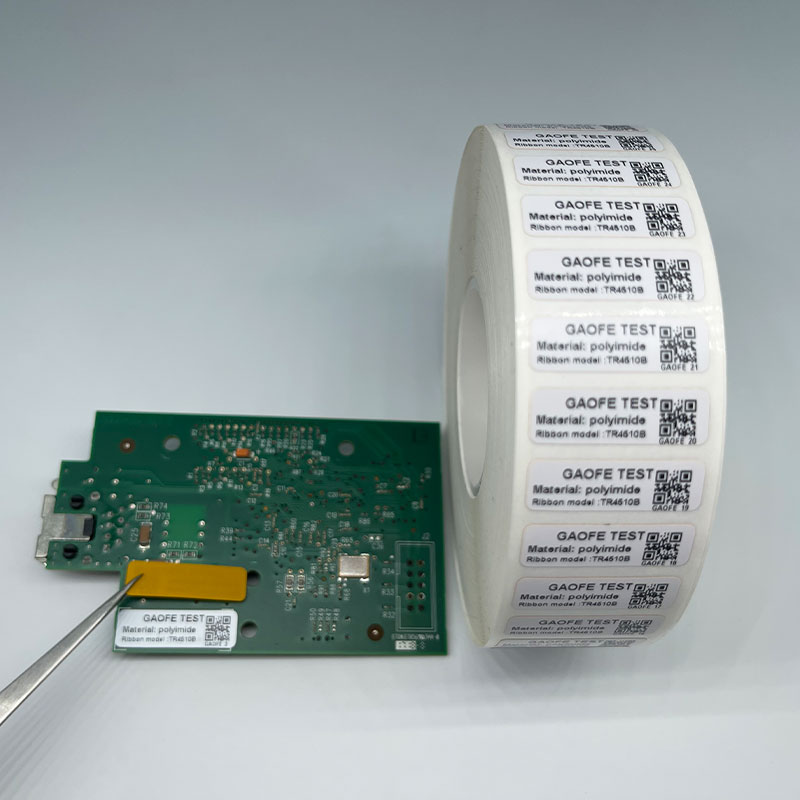

PCB Assembly: Labels withstand reflow soldering (260°C+) and wave soldering, ensuring legibility throughout SMT processes.
Component Tracking: Identifies ICs, resistors, and connectors on boards during production and testing.
Optimal Printing Solutions
Recommended Ribbons:
GAOFE TR4510B resin ribbon
High Temperature Resistance
Withstands 300°C for 10 seconds (compatible with reflow/wave soldering processes)
Short-term exposure tolerance up to 150°C (e.g., automotive ECU modules)
Recommended Printers:
Zebra ZT610 Industrial Printer
Supports 600dpi ultra-high resolution printing
Delivers crisp reproduction of 0.2mm micro fonts/barcodes
Ideal for precision PCB labeling and tiny component identification
Other Option
No | name | thickness | color |

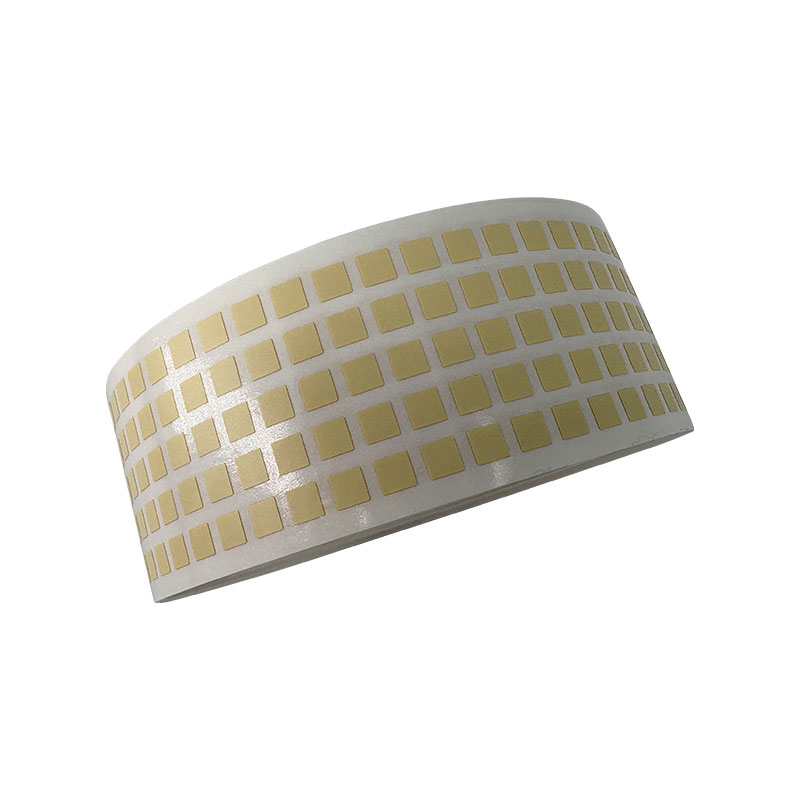

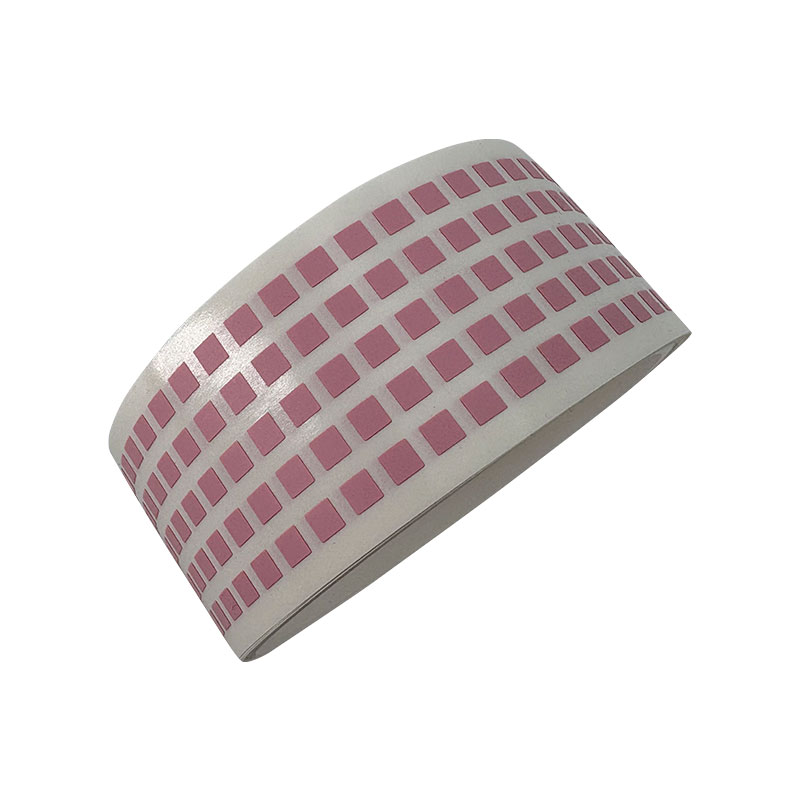

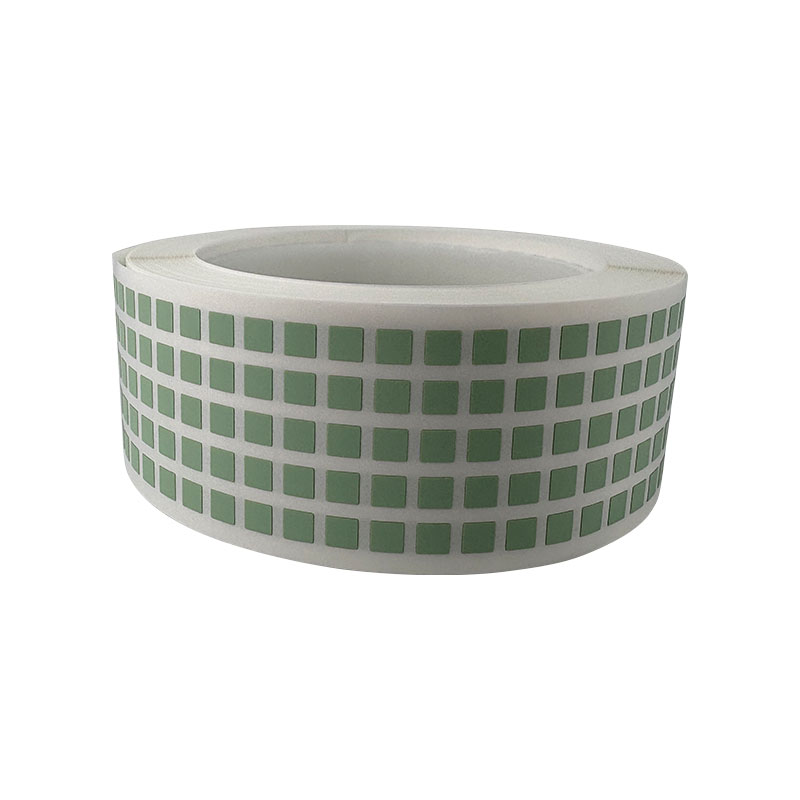

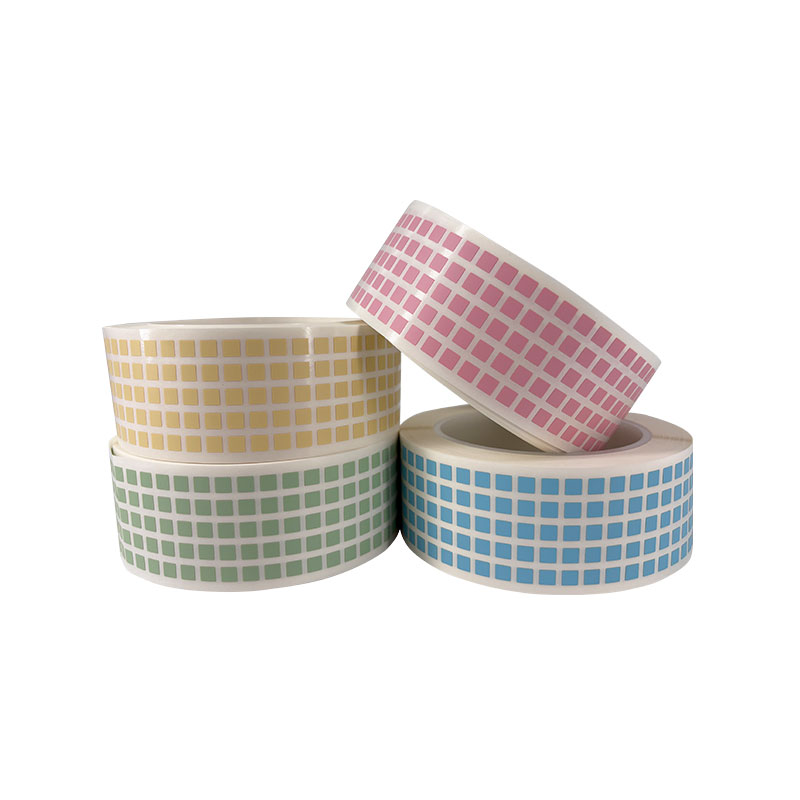

1 | Polyimide label | 25# | blue, green,pink,yellow ,white |
2 | Polyimide label | 50# | semi matt white, pink , orange |
3 | Removable Polyimide label | 25# | blue green pink oyellow |
4 | Removable Polyimide label | 50# | white |
5 | Anti static Polyimide label | 25# | white |
6 | Anti static Polyimide label | 50# | white |
Specification :
Performance | Test method | Typical test results |
Tested according to ASTM d1000 | ||
thickness | coating | 0.015~0.018mm |
base material | 0.050±0.005mm | |
adhesive | 0.025±0.002mm | |
tickness | 0.090±0.007mm | |
Adhesion force Stainless steel | Tested according to ASTM d1000 | ≥6.0N/inch |
Speed 300 mm/min,paste 20 min | ||
INITLAL TACK | J. Dow test according to gb-4852 | ≥1# |
Adhesion force | Tested according to GB / t-4851 | >24hour |
Maximum applicable temperature | 5 minutes at 300 ℃ | No influence |
Minimum applicable temperature | 3 days at-30℃ | No influence |
Moisture resistance | 37℃, relative humidity 95% for 3 days | No influence |
UV resistance | 3 days under UV Sunlight TM-100 | No influence |
Aging resistance | Tested in accordance with ASTM g 26, | No influence |
3 days in arc xenon weather meter | ||
Salt spray resistance | Spray 5% salt solution into mist in the laboratory, and Label in this laboratory for 3 days (ASTM B 117) | No influence |
Adaptability test:
Test method: print with special series of ribbon for cab and Zebra printer. Before the test, stick the sample on the aluminum plate and allow it to stand for 24 hours.
