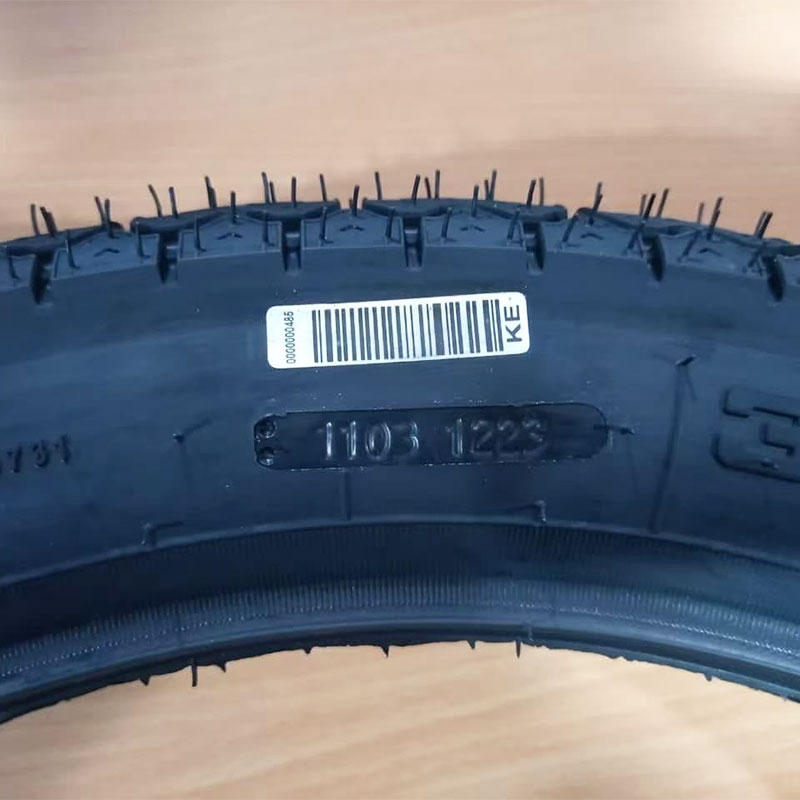

Heat-Resistant Tire Tracking Vulcanized Tire Labels – Vulcanized for Durability

Overview

This product is a rubber based pressure-sensitive adhesive and a dumb white polyester film label suitable for printing. It is a label designed for the application of tire vulcanization process. It has the advantages of highbonding strength after vulcanization, acid and alkali resistance, etc.

 Feature

1. Extreme Heat Resistance

Specifically engineered for tire vulcanization, maintaining stability under 170°C/20min curing conditions without peeling or deformation.

Post-vulcanization adhesion strength ≥3N/inch, ensuring permanent bonding with rubber surfaces.

2. High-Scannability After Vulcanization

Barcodes/QR codes remain machine-readable even after high-temperature curing, enabling reliable production tracking (DOT codes, batch tracing).

3. Chemical & Solvent Resistance

Withstands exposure to oils, acids, alkalis, and industrial cleaners, making it ideal for harsh environments (seals, conveyor belts).

Application :

Tire Manufacturing Industry

• Specifically designed for tire vulcanization process

• Ensures barcodes remain perfectly scannable after curing




Rubber Products Manufacturing

• Ideal for permanent labeling of various rubber components:

• Seals and gaskets

• Conveyor belts

• Industrial rubber parts

• Features excellent resistance to:

• Acids and alkalis

• Oils and solvents

• Other harsh industrial chemicals

Optimal Printing Solutions

Recommended Ribbons:

GAOFE TR4133 Vulcanized Resin Ribbon

1. Superior Temperature Resistance，Withstands continuous exposure to 200°C+ environments

2. Exceptional Adhesion Performance，Achieves ≥3N/inch bond strength post-vulcanization

Recommended Printer

Zebra ZT610 Industrial Printer (600DPI)

  1.Wide Thickness Compatibility:

Supports labels from 0.06–0.51mm, ideal for thick vulcanized labels (typically 0.2–0.4mm), preventing jams or print pressure issues.

  2. 600DPI Ultra-High Resolution:
Delivers crisp text, high-density barcodes

  3.Fast Printing Without Compromise:

Up to 14 IPS (356 mm/s) speeds maintain efficiency for bulk tire label production.

Performace

Products and manufacturers

Product name: B-536G

Purpose: vulcanization label labeling

Manufacturer: Dongguan Gaofei Electronic Technology Co., Ltd

Address: 2/F, Building D, Huangniling Industrial Zone, Zaoyi (2) Village, Wentang, Dongcheng District, Dongguan

Tel: +86-769-22655045

Composition

Health hazards

Main hazard: substances harmful to health may be produced if they are not treated according to the method

First aid measures

Skin contact: harmless

Eye contact: the gas generated by combustion will cause pain, red spots and other injuries to the skin.

Explosion characteristics and fire protection

Extinguishing method: foam, carbon dioxide and dry powder extinguishers.

Hazardous characteristics: produce irritating gas when burning.

Fire protection: wear self-contained breathing apparatus.

Leakage emergency treatment

Personal protection: avoid eye contact and other skin to prevent long-term contact with materials.

Environmental protection: recycle as much as possible. Those that cannot be recycled shall be burned and destroyed at the designated place.

Precautions for storage, transportation and use

Protective measures: avoid long-term contact and wear gloves.

Storage conditions: The storage environment should be cool and dry, keep good ventilation,and avoid rain and moisture.

Protective measures

Protective measures: speed up air circulation and/or install appropriate air extractors in the plant area.

Personal protection:

Hands: Do not touch for a long time.

Eyes: Do not touch directly, wear goggles.

Skin/body: Do not touch for a long time.

Physical and chemical properties

Stability and reactivity

Stability: Stable under normal use and storage temperature.

Reactivity: basically inert at room temperature.

Harmful substances that can be decomposed into: irritating gas will be generated when burning.

Toxicological data

Inhalation: The dense steam at high temperature is irritating.

Skin contact: no irritation.

Environmental data

Residual time and degradability: non-biodegradable.

Ecological toxicity: insoluble in water, not directly released in water or environment.

Abandonment

Waste disposal of finished products: incinerate at the designated place.

Waste disposal of packaging materials: only incinerate at the approved waste disposal site.

Transportation information

International regulations: This product is not subject to international RID-ADR, IMO-IMDG and OACI-IATA regulations.

Regulatory information

Identification: This product is not subject to 88/379EEC.

Symbol: None.

Other information: comply with relevant regulations.

Others

Recommended use: vulcanization label labeling

Version No.: 4

Updated on: May 7, 2021

Note: This safety technical specification follows the international standard ISO 11014-1. This information is based on the best professional knowledge of our company at the time of the release of the safety technical specification. The information and data are accurate and true. Users should pay attention to other possible hazards when using this product outside the recommended range. In this case, the user needs to conduct a comprehensive evaluation of the item. This safety data sheet can only be used and copied if necessary measures have been taken for health protection, safety and environmental protection. The codes of reference information, control clauses and use documents of legislative bodies are not exhaustive. It is the user's responsibility to pass all the information contained in this manual to any subsequent personnel who will contact, use and dispose of this product in any way.
