BA410T-TS16-CN-5
High-Frequency (HF) Support: Compatible with ISO 15693 RFID tags, suitable for item-level or pallet-level tagging.
Encoding & Verification: Simultaneously prints and encodes RFID tags while verifying data accuracy to minimize errors.
Batch Processing: Supports continuous RFID encoding for high-volume label production.
Industrial-Grade Printing: Uses thermal transfer technology for high-resolution printing (up to 300dpi), handling barcodes, text, and graphics.
Wide Compatibility: Supports label widths up to 104mm, accommodating various RFID tag sizes (e.g., 50×30mm, 100×100mm).
High-Speed Printing: Prints up to 6 inches per second (152mm/s), ideal for heavy-duty operations.
Metal Construction: Full-metal housing ensures impact resistance and heat dissipation for 24/7 operation.
Large Capacity: Supports 300m ribbon and 150mm label rolls, reducing replacement frequency.
Environmental Adaptability: Operates in 0-40°C and 20-80% humidity (non-condensing), suitable for warehouses or factories.

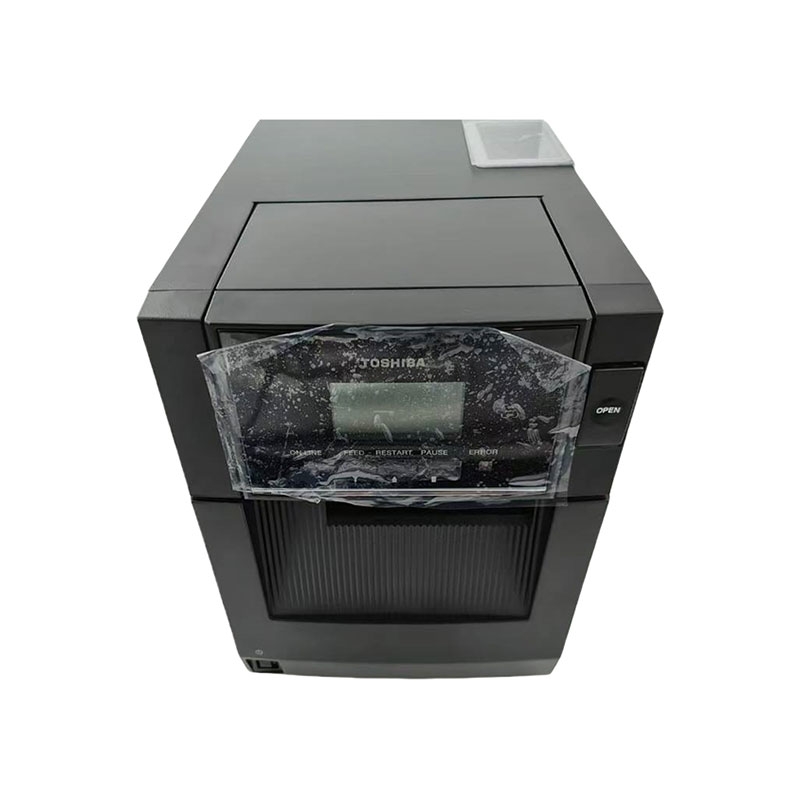

Touchscreen Interface: 4.3-inch color touchscreen for easy setup and monitoring.
Multiple Connectivity Options: Includes USB, serial, Ethernet, and optional Wi-Fi for seamless integration.
Smart Sensors: Auto-detects label gaps, black marks, and RFID chip positions, minimizing manual adjustments.
Logistics & Warehousing: RFID tagging for pallets and shelves, enabling fast inventory checks.
Retail & Apparel: Item-level tagging for anti-counterfeiting and stock tracking.
Manufacturing: Tracks components or finished goods with RFID-enabled labels.

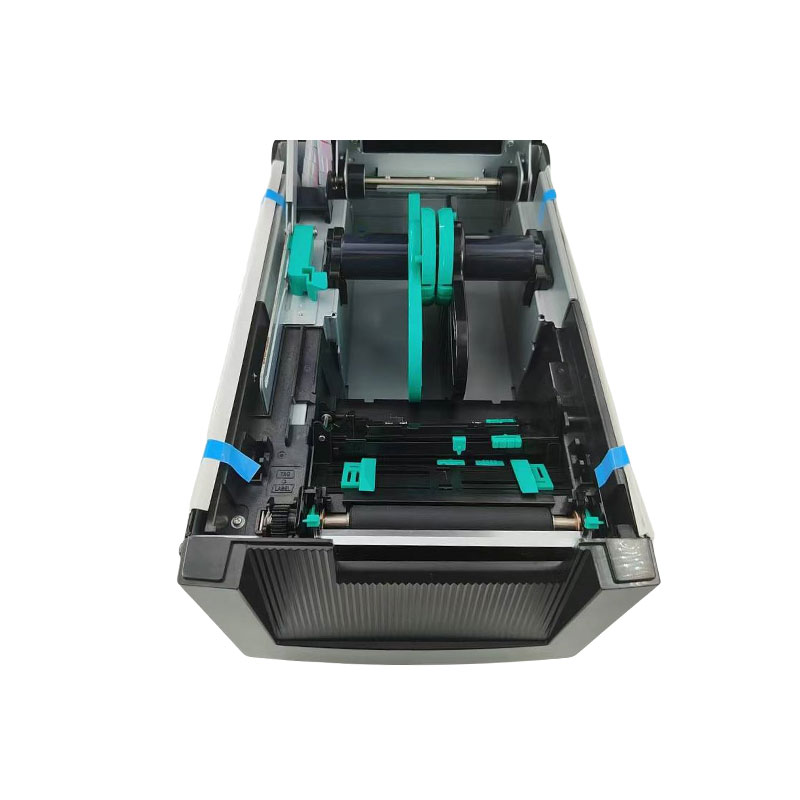

Low-Maintenance Design: Modular structure allows easy cleaning and replacement of print heads and rollers.
| model | BA410T-TS12-CN-S | BA410T-TS16-CN-S | |
| specificat ions | Print way | Direct heat / t hermal transfer | |
| resolution ratio | 300dpi | ||
| print out rate | Vacation 8 inches / s | ||
| operator schema | Batch mode, peel mode (optional), cutter mode (optional) | ||
| print span | ≤104mm | ||
| Tags specifications | Thermaltransfer: 25mm-114mm (thermal transfer) / thermal:25mm -118mm (including bottom paper) | ||
| joggle | Interface (standard) | USB2.0, USBHost, LAN10/100 Base, Bluetooth , NFC | |
| RFID | RFID module | not have | Standard UHF RFID function Default frequency band: 920.625-924.375 MHz (CN) Available label: EPC C1 Gen2, ISO -18000-6C |
| internal storage | Memory (standard) | 128MB DRAM/128MB FLASH | |
| Bar code and text | One dimensional code type | JAN 8, JAN 13, EAN 8 (and extended 2 types), EAN 13 (and extended 2 types) UPC-E (and extended 2 types),UPC-A (and expanded Show 2 types), MSI, ITF, NW-7, CODE 39, CODE 93, CODE 128, EAN 128, Industrial 2 to 5, Customer Barcode, POSTNET, KIX CODE,RM4SCC, GS1 DataBar, MATRI X2 of 5 for NEC, et al | |
| QR code type | Data Matix,PDF417,QR code,Maxi Code,Micro PDF417,CP C ode,Security QR code,Aztec,GS1 Data Matrix | ||
| form of a written or printed character | English / digital / pseudonym lattice font: Times Roman, Helvetica, Presentation, Letter Gothic, Pr estige Elite, Courier, OCR, Gothic total 21, English smooth (4), price (3), Chinese lattice (1), support loading OTF / TTF font (UTF-8) | ||
| angle of rotation | 0°,90°,180°,270° | ||
| Purchase parts | Cutting knife module, stripping module, serial port card, wireless card, expand I /0 card, clock card, and mouth card, continuous paper guide | ||
| Other parameters | source | Universal switching power supply from AC100V to 240V, 50 / 60Hz | |
| size | 238.0mmX401.7mmX331.5mm (WXDXH) | ||
| weight | 15 kg (without label and ribbon) | ||
