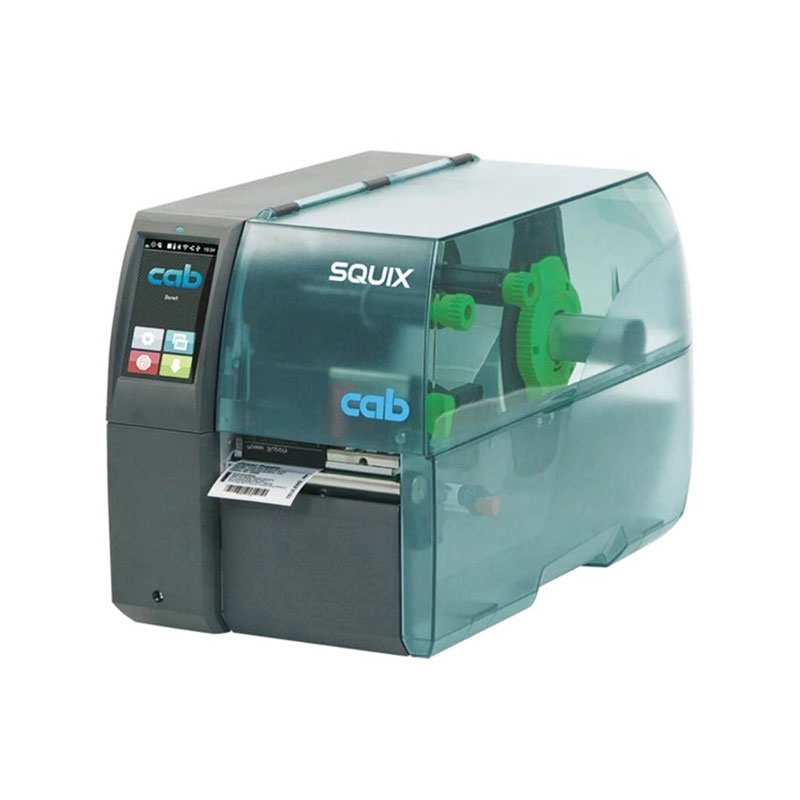

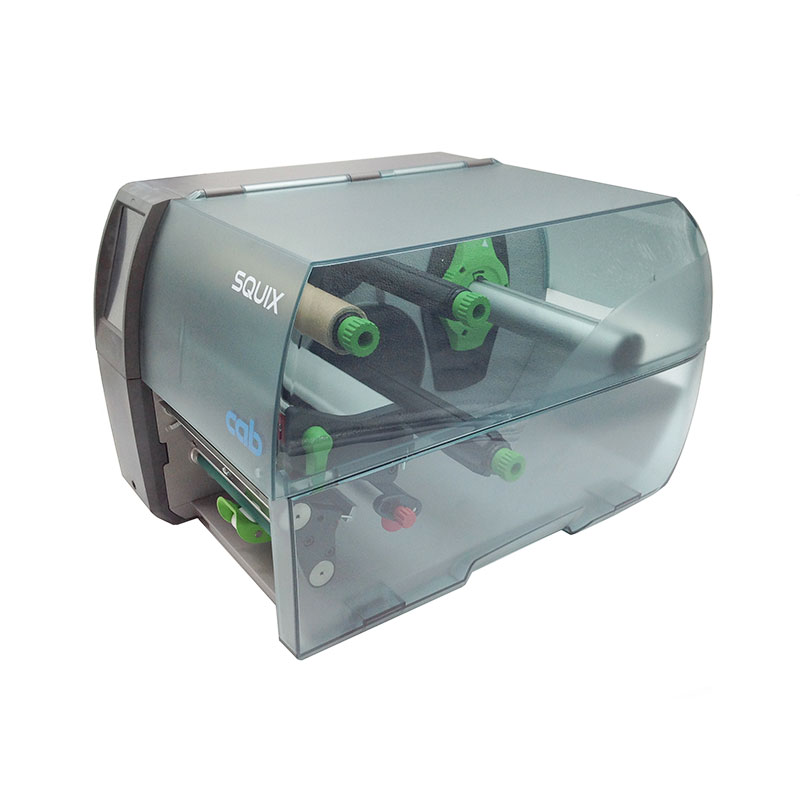

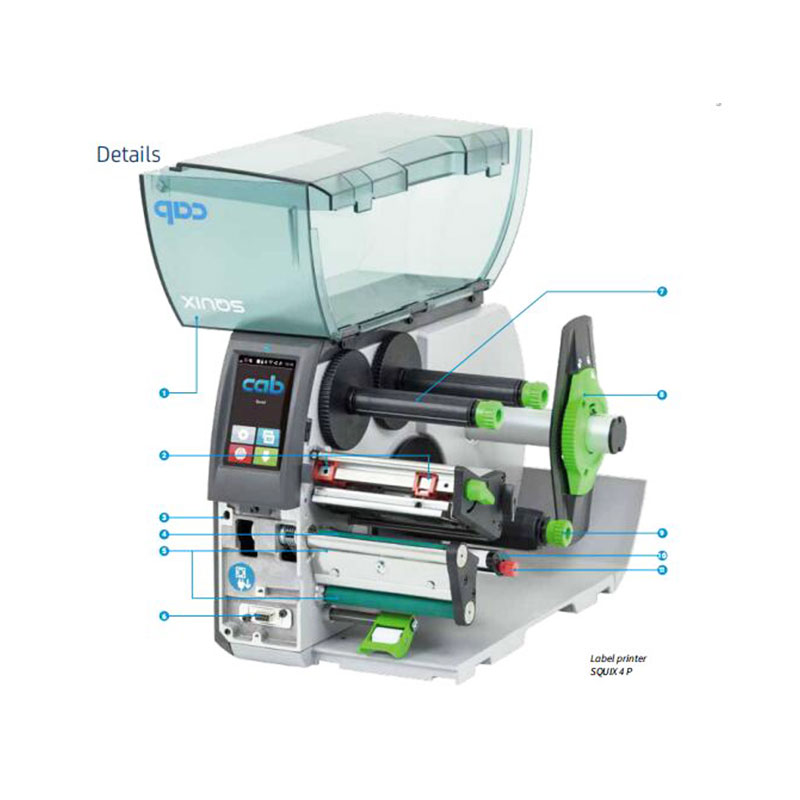

CAB SQUIX4+G1000

Precise and flexible ones to print on all materials wound on rolls or reels or fanfold, in particular very small labels or slim continuous materials such as pressed shrink tubes.

Quantity:
Availability:





Inquire Add to Basket

CAB SQUIX4+G1000

Product Description

Precise and flexible ones to print on all materials wound on rolls or reels or fanfold, in particular very small labels or slim continuous materials such as pressed shrink tubes.

Label printer	SQUIX 4.3M		SQUIX 4M
Printable resolution (dpi)	203	300	300	600
Print speed (up to mm/s)	250	250	300	150
Print width (up to mm)	104	108.4	105.7	105.7

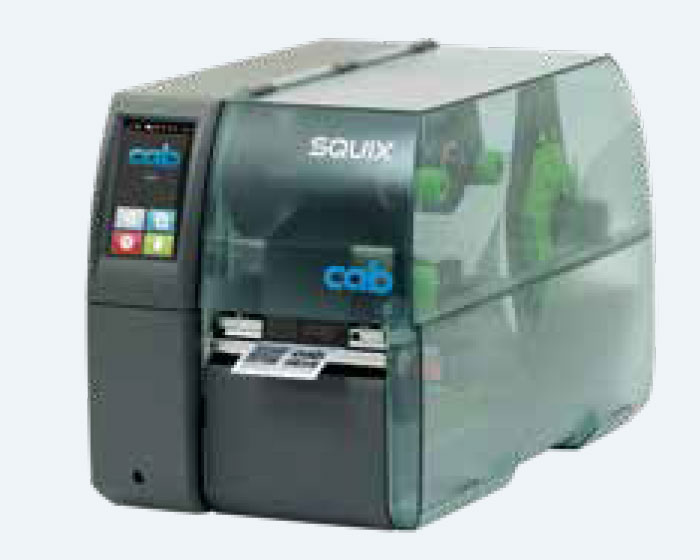

basic device

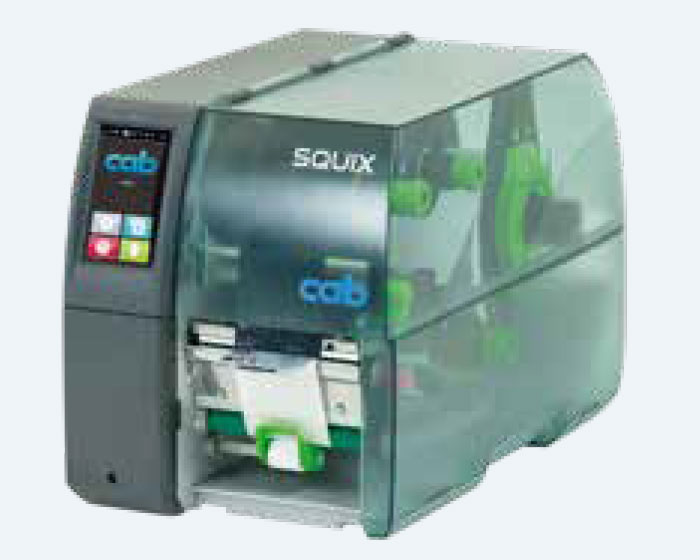

peel-off device

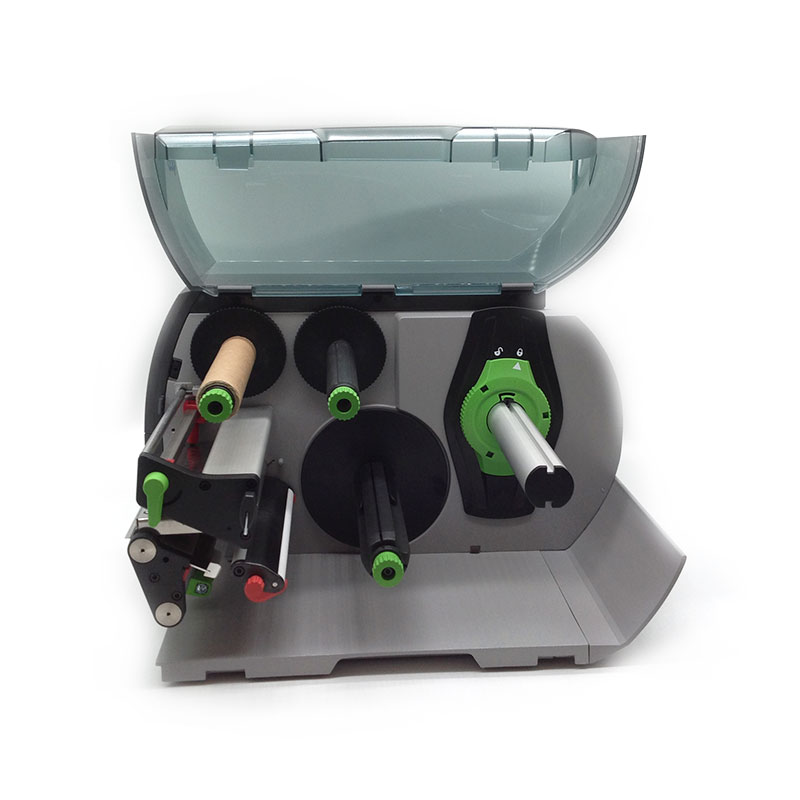

Differences to left-aligned material guidance

1. Ribbon holder

A preprinted ruler simplifies setting a ribbon.

2. Plungers

Both positions remain fixed with all widths of material. There is no need of adjustment on the print head.

3. Roll holder

By applying the margin stop, a roll centers automatically

4. Material guide

attached next to the print roller to ensure accurate print images.

Material widths are set with the help of a spindle

5. Slim print rollers

to obtain accurate print images if small materials and ribbons are in use. They prevent from roller wear, print head contamination and errors while materials are fed. Synthetic rubber coating

left-aligned-material-guidance

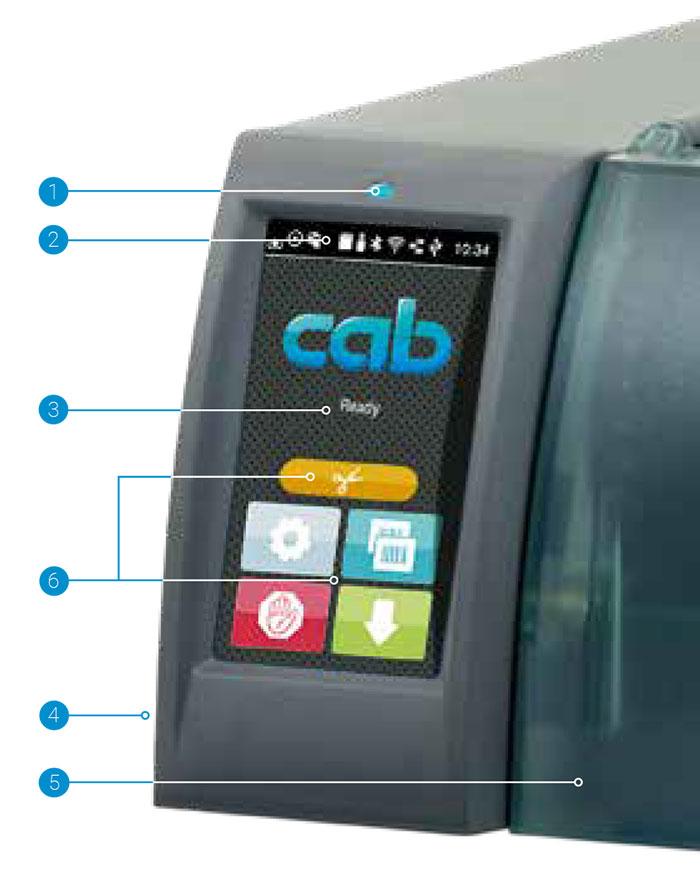

Operation panel

Self-explanatory symbols help with the device settings and enable a printer to be operated intuitive and easily.

1. LED: Power ON

2. Status bar: reception of data, record data stream, pre-warning to a ribbon ending, SD memory card / USB memory stick plugged, Bluetooth, WLAN, Ethernet, USB slave, time

3. Printer status: ready, pause, number of labels printed in a print job, label in peel-off position, external start signal awaited

4. USB port to plug a service key or a memory stick, to transfer data to the IFFS memory

5. USB WLAN stick 2.4 GHz 802.11b/g/n enclosed in the scope of delivery;

In hotspot mode, mobile devices can connect directly to a printer via WLAN.

6. Operation

Cutter / perforation cutter: cutting

External rewinder: wound outside or inside Tear-off mode / peel-off mode: printing a label

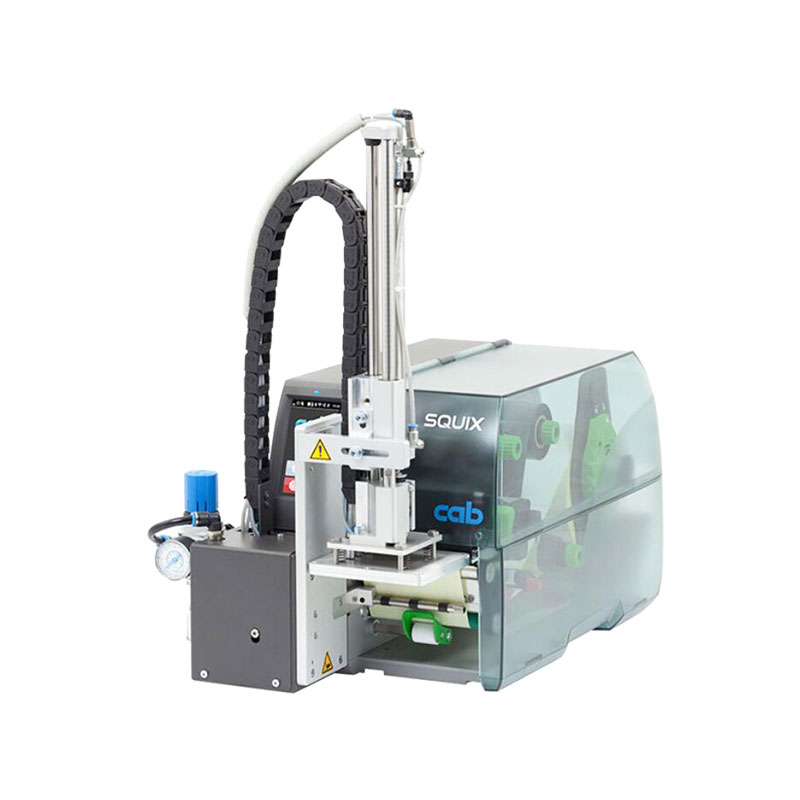

Applicator: printing and labeling in individual steps

Operation-panel

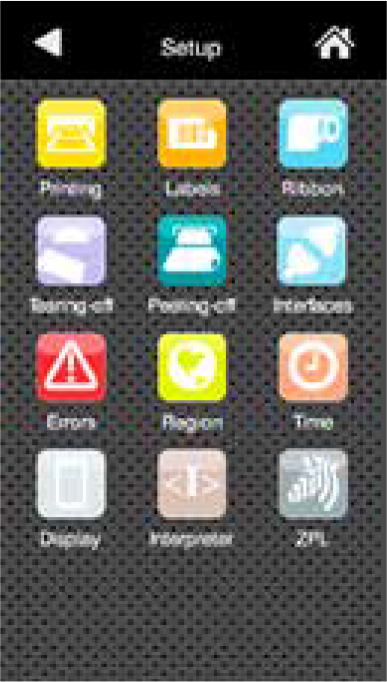

Setup options

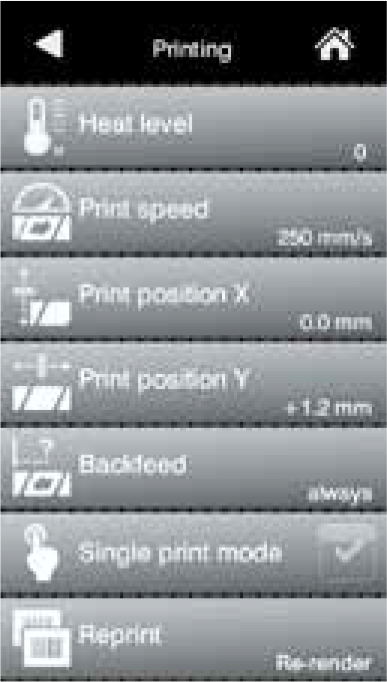

Printing parameters

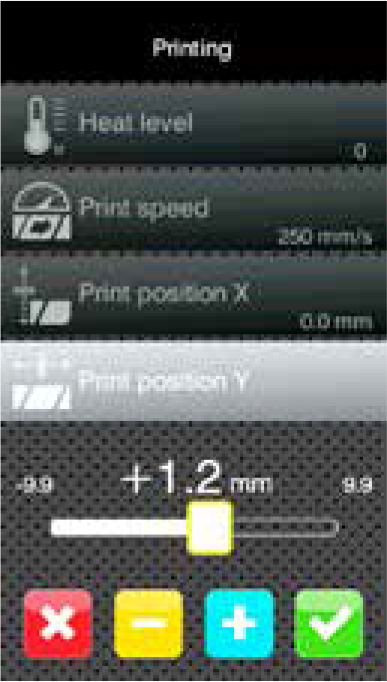

Print positions Y

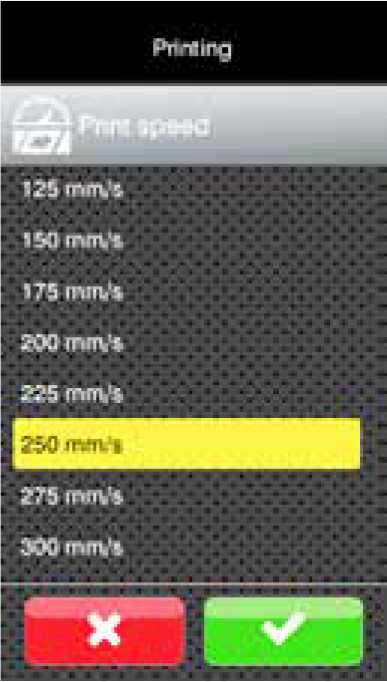

Print speeds

Video tutorials

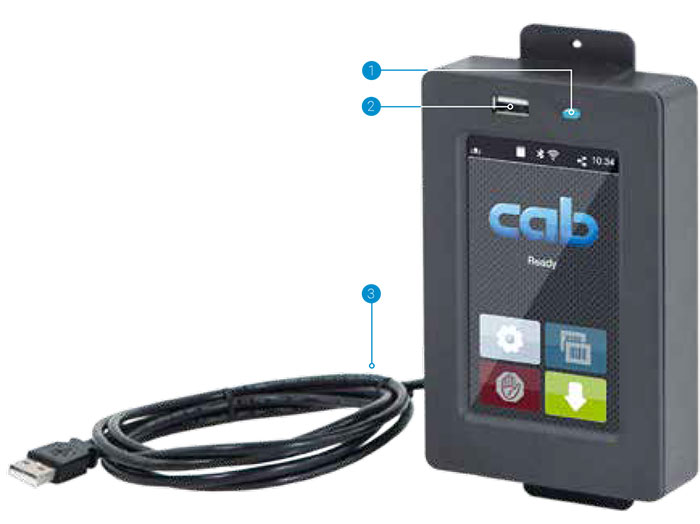

External operation panel

same functionality as on the printer display in landscape or portrait mode

Users are free to choose whether to operate the external panel or the one installed on the printer.

USB 2.0 Hi-Speed device to connect a printer

1. LED: Power ON

2. USB port to plug a service key or a memory stick, to transfer data to the IFFS memory

3. Connecting USB cable, lengths 1.8 m to 16 m. If length succeeds 3 m, use only specified cables.

For dimensions see assembly instructions

External-operation-panel

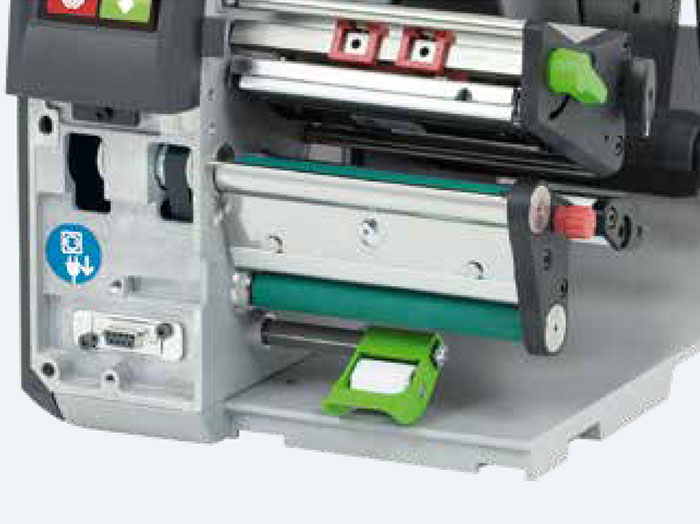

Print-heads

Print heads

• A print head can be replaced by any other one,

provided they are of equal width.

They are detected and calibrated by the CPU automatically.

Major data such as the operational performance, maximum

operational temperatures and heat energies are kept in memory

on a print head. The data can be read at the premise.

• Print heads provided for SQUIX 2, SQUIX 4 - 300, 600 dpi

to print sharp-edge images

to print small fonts and graphics on typeplates

to print on materials that imply high energy needs

• Print heads provided for SQUIX 4.3, SQUIX 6.3 - 203, 300 dpi

durable

to operate in harsh environments, thermal direct printing

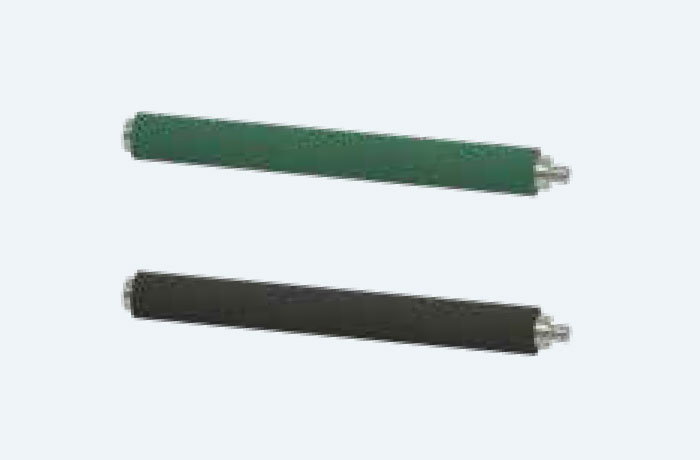

Print rollers

Two materials

• Print rollers DR

Synthetic rubber coating

highly accurate print images, provided as standard

• Print rollers DRS

Silicone coating

extra long service life at a higher print image tolerance

Print-rollers

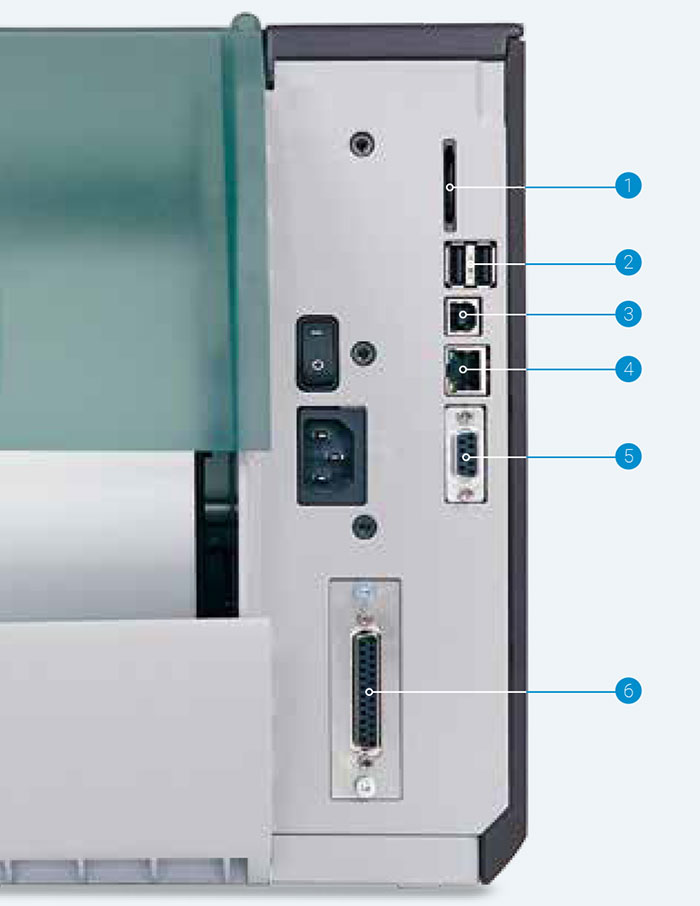

Interfaces

Interfaces

1. to plug a SD memory card

2. 2 USB hosts to plug a service key, USB memory stick,

keyboard, barcode scanner, USB Bluetooth adapter,

USB WLAN stick, external operation panel

3. USB 2.0 Hi-Speed device to connect a PC

4. Ethernet 10/100 Mbit/s

5. RS232-C 1,200 to 230,400 baud / 8 bit

6. Digital I/O interface

a standard on peel-off devices, an option for basic devices

Printing is triggered by a PLC, a sensor or with the help

of a hand switch. Status and error reports are displayed.

compliant to IEC/EN 61131-2, type 1+3

All the inputs and outputs are galvanically isolated and protect

from reverse polarity. The outputs also protect from short circuit.

PNP inputs

Start printing or labeling

Print first label Reprint

Delete print job Label removed

Stop printing or labeling

Pause Reset

PNP, NPN outputs

Device ready

Print data available

Initial / upper end position Paper feed ON

Label in peel-off position

Label transfer / lower end position Pre-warning to ribbon ending

Collective error

Technical data

Label printer Type	SQUIX 2		SQUIX 4.3		SQUIX 4		SQUIX 6.3		SQUIX 4.3 M		SQUIX 4M		SQUIX 4.3MT	SQUIX 4 MT
Material guidance	left-aligned								centered
Thermal transfer Thermal direct	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●
	O		●	●	O		●	●	●	●	O		●	O
Printable resolution dpi	300	600	203	300	300	600	203	300	203	300	300	600	300	300	600
Print speed up to mm/s	250	150	250	250	300	150	250	250	250	250	300	150	250	300	150
Print width up to mm	56.9	54.1	104	108.4	105.7	105.7	168	162.6	104	108.4	105.7	105.7	108.4	105.7	105.7
Initial print Distance to locating edge mm	2		2.8	1.2	2		0.5	3.2	centered
Material1)
Paper, cardboard, plastics PET, PE, PP, PI, PVC, PU, acrylate, Tyvec	●		●				●		●				●
Shrink tube ready for use continuous, pressed	–		O				O		●				O
	–		–				–		●				O
Textile tape									O				●
Packing wound on a roll, fanfold wound on a reelRoll diameterup to mmCore diametermm Winding	●		●				●		●				●
	–		–				–		●				●
	205
	38.1 - 76
	outside or inside
Labels Width mm Height no label backfeed2) from mm label backfeed2) from mm label backfeed peel-off from mm Thickness mm	4 - 63		20 - 116				46 - 176		4 - 110				4 - 110
	4		4				6		3				4
	4		6				12		4				6
	6		6				12		6				–
	0.03 - 0.6
LinerWidthThicknessmm mm	24 - 67		24 - 120				50 - 180		9 - 114				9 - 114
	0.03 - 0.16
Continuous Width mm material Thickness mm Weight (cardboard) up to g/m2	24 - 67		24 - 120				50 - 180		9 - 114				9 - 114
	0.05 - 0.5
	300
Shrink tube Width ready for use up to mm continuous, pressed mm Thickness up to mm	–		120				–		114				114
									4 - 85				4 - 85
	–		1.1				–		1.1				1.1
Ribbon3) Coating Roll diameterup to mmCore diametermmLengthup to m Width mm	outside or inside
	90
	25.4
	600
	25 - 67		25 - 114				50 - 170		25 - 114				25 - 114
Internal rewinder provided on peel-off devices
Outside diameter up to mm	142												–
Core diameter mm	40												–
Winding	outside												–
Printer dimensions and weights
Width x Height x Depth mm	200 x 288 x 460		252 x 288 x 460				312 x 288 x 460		252 x 288 x 460				252 x 288 x 460
Weight kg	9		10				14		10				10
Label sensors to indicate positions
Transmissive sensor detecting	labels or punch marks and materials ending, print marks on translucent materials
Reflective sensor reflex from below or top detecting	labels and materials ending, print marks on non-translucent materials
Sensor distance to locating edge left-aligned mm from centre to locating edge centered mm	5 - 26		5 - 60				5 - 60		–				–
									0 - 55				0 - 55
Material passage up to mm	2
Electronics
Processor 32 bit clock rate MHz	800
Main memory (RAM) MB	256
Data memory (IFFS) MB	50
Port to plug a SD memory card (SDHC, SDXC) up to GB	512
Battery to indicate time and date, real-time clock	■
Data memory when power turns off (e.g. serial numbers)	■
Interfaces
RS232-C 1,200 to 230,400 baud / 8 bit	■
USB 2.0 Hi-Speed device to connect a PC	■
Ethernet 10/100 Mbit/s	LPD, RawIP printing, SOAP webservice, OPC UA, WebDAV DHCP, HTTP/HTTPS, FTP/FTPS, TIME, NTP, Zeroconf, SNMP, SMTP, VNC
1 USB host on the operation panel to plug a	service key or USB memory stick
1 USB host on the operation panel to plug a	USB WLAN stick 2.4 GHz 802.11b/g/n
2 USB hosts on the back of the device to plug a	Service Key, USB memory stick, keyboard, barcode scanner, USB Bluetooth adapter, USB WLAN stick, external operation panel
USB WLAN stick 2.4 GHz 802.11b/g/n 2.4 GHz 802.11b/g/n + 5 GHz 802.11a/n/ac, rod antenna	hotspot mode or infrastructure mode ■ (enclosed in the scope of delivery)
	hotspot mode or infrastructure mode □
USB Bluetooth adapter	□
USB host, 24 VDC, to plug peripherals	■
Digital I/O interface Peel-off printer providing 8 inputs and outputs Basic printer	■												–

Technical data

Operating data
Voltage		100 - 240 VAC, 50/60 Hz, PFC
Power consumption		< 10 W in standby / typical are 100 W
Temperature / Operation humidity Stock Transport		+5 - 40°C / 10 - 85 %, not condensing
		0 - 60°C / 20 - 85 %, not condensing
		–25 - 60°C / 20 - 85 %, not condensing
Approvals		CE, FCC Class A, ICES-3, cULus, CB, CoC Mexico, CCC, EAC, BIS, BSMI, KC-Mark, RCM
Operation panel
Colored LCD touch display Screen diagonal " Resolution Width x Height px				4.3
				272 x 480
Setup options
	Print Region: Labels - Language Ribbon - Country Tear-off - Keyboard Peal-off - Time zone Cut Time Apply Display: Interfaces - Brightness Error - Power saving mode - Orientation Interpreter
Status bar
	Reception of data Record data stream Pre-warning to a ribbon ending Ethernet SD memory card plugged USB slave USB memory stick plugged Time
Controls
	Ribbon winding Ribbon pre-warning Ribbon ending Material ending		Print head voltage Print head temperature Print head open Pinch roller open (peel-off device, separator) Peripheral error
Test routines
System diagnostics	and print head detection at start up
Display of information, test printout, analysis	Status printout Fonts list List of devices WLAN status		Test grid Label profile List of events Monitor mode
Status reports	- Printout of printer settings such as print lengths and service hours so far - Device status request by software command - Display of network errors, links missing, barcode errors, peripheral errors, etc. on the operation panel
Fonts
provided internally to store	5 bitmap fonts: 12 x 12 dots 16 x 16 dots 16 x 32 dots OCR-A OCR-B TrueType fonts		7 vector fonts: AR Heiti Medium GB-Mono CG Triumvirate Cond. Bold Garuda HanWangHeiLight Monospace 821 Swiss 721 Swiss 721 Bold
Character sets	Windows-1250 to -1257 DOS 437, 737, 775, 850, 852, 857, 862, 864, 866, 869 EBCDIC 500 ISO 8859-1 to -10 and -13 to -16 WinOEM 720 UTF-8 MacRoman DEC MCS KOI8-R Western European Cyrillic Eastern European Greek Chinese, simplified Latin Chinese, traditional Hebrew Thai Arabic
Bitmap fonts	Widths and heights 1 - 3 mm Zoom factors 2 to 10 Orientations 0°, 90°, 180°, 270°
Vector / TrueType fonts	Widths and heights 0.9 - 128 mm Continuous zoom Orientation 360° in steps of 1°
Font styles	bold, italic, underlined, outline, inverse - depending from the font type
Character spacing	variable or monospace

Graphics
Elements	lines, arrows, rectangles, circles, ellipses -filled and gradient
Formats	PCX, IMG, BMP, TIF, MAC, GIF, PNG
Barcodes
Linear	Code 39, Code 93 Code 39 Full ASCII Code 128 A, B, C EAN 8, 13 EAN/UCC 128 / GS1-128 EAN/UPC Appendix 2 EAN/UPC Appendix 5 FIM HIBC	Interleaved 2/5 Ident and routing code of Deutsche Post Codabar JAN 8, 13 MSI Plessey Postnet RSS 14 UPC A, E, E0
2D and stacked	DataMatrix DataMatrix Rectangle Extension QR code Micro QR code GS1 QR code GS1 DataMatrix PDF 417 Micro PDF 417 UPS MaxiCode GS1 DataBar Aztec Codablock F Dotcode RSS 14 truncated, limited, stacked, stacked omni-directional
	All codes may vary in height, modular width and ratio. Orientations 0°, 90°, 180°, 270° Check digits, plain text printouts and start/stop codes are options depending from the type of code.
Software
Label software	cablabel S3 Lite cablabel S3 Viewer cablabel S3 Pro cablabel S3 Print		■ ■ □ □
Running also with	CODESOFT NiceLabel BarTender
Stand-alone operation			■
Windows printer drivers WHQL certified for	Windows Vista Windows 7 Windows 8 Windows 8.1 Windows 10	Server 2008 Server 2008 R2 Server 2012 Server 2012 R2 Server 2016 Server 2019	■
Apple Mac OS X printer drivers	from version 10.6		■
Linux printer drivers	from CUPS 1.2		■
Programming	JScript printer language abc Basic Compiler		■ ■
Integration	SAP Database Connector		■ ■
Emulation	ZPL (Datastream must be tested in advance.)
Administration	Printer control Configuration in the Intranet and Internet Network Manager (in preparation)		■ ■ ■

■ standard □ option

OPC UA

All the latest cab printers are ready to interact with machines and components of different manufacturers in industrial plants.

An OPC UA server and a client are a part of the firmware.
