B-231G
GAOFE
Overview

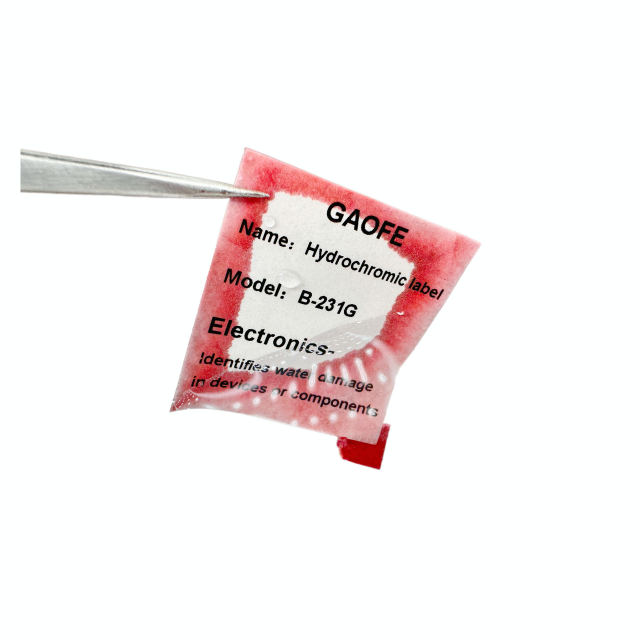

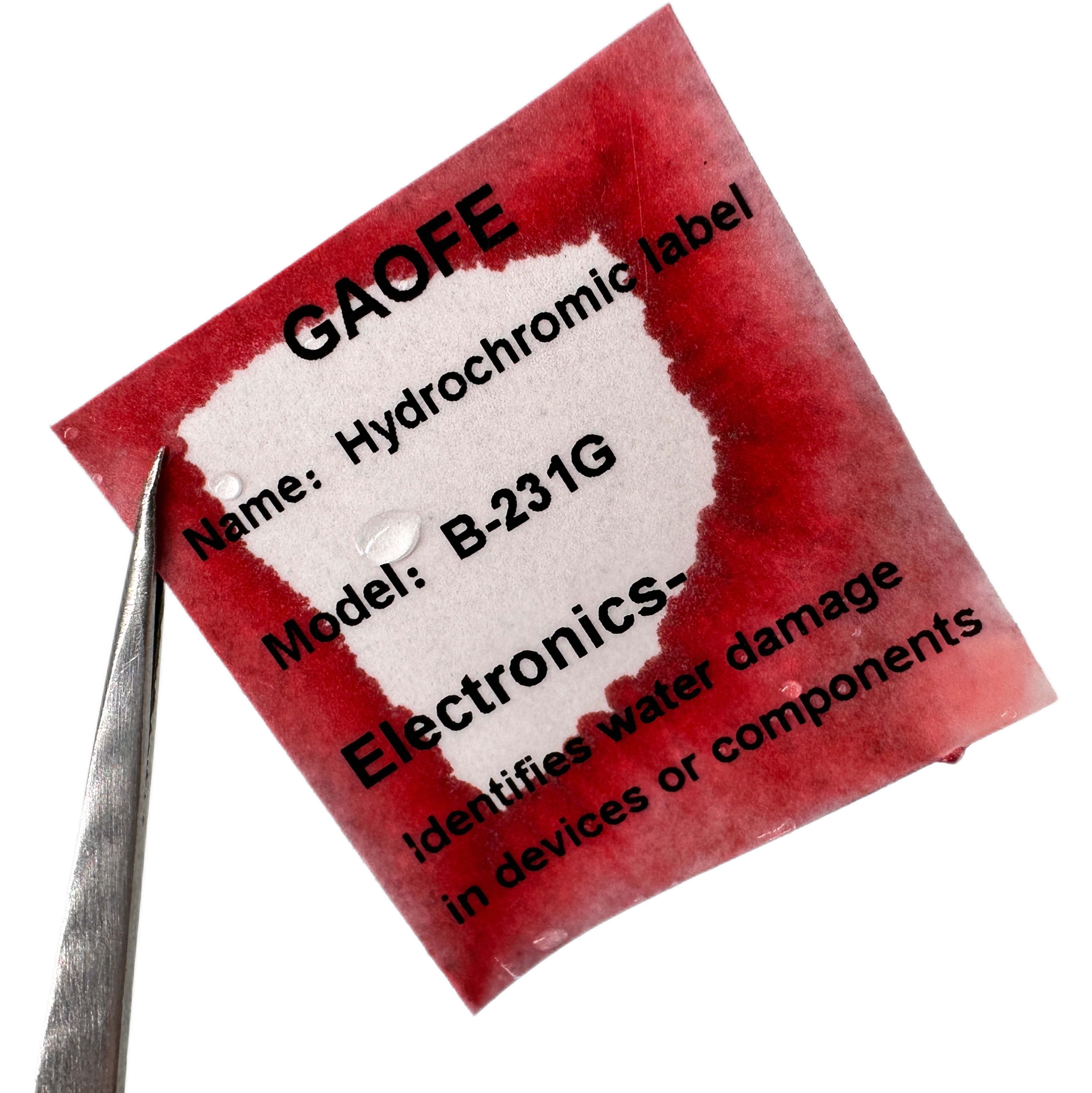

The GAOFE B-231G hydrochromic label is a smart moisture-proof traceability label designed for high-value products. It features an immediate color change to red upon contact with water, providing a visible proof of moisture exposure. This allows for quick and accurate identification of products affected by moisture during transportation, storage, or use, without the need for professional testing equipment.
Fetaures
• Instant Color Change: The label changes color to red instantly upon contact with water, with a reaction time of less than 1 second, making the moisture status clearly visible.
• Accurate Problem Identification: The visible evidence of moisture provides a clear basis for determining responsibility, enabling rapid after-sales response and reducing the risk of disputes.
Application
• New Energy: Battery packs and energy storage equipment for moisture-proof monitoring during transportation.
• Electronic Manufacturing: Packaging and protection of precision circuit boards and semiconductor components.
• Food and Medical: Moisture-proof traceability management for high-end food and pharmaceutical products.
• Logistics and Warehousing: Monitoring the humidity environment of high-value goods during storage.
Model: TR4032B Resin Ribbon:
Optimized for printing on water-sensitive labels, ensuring sharp, smudge-resistant text and barcodes. Resin ribbons provide superior durability against abrasion and moisture, maintaining print clarity even in harsh conditions.
Model: CAB Mach2 (300dpi):
High-speed desktop printer with precise 300dpi resolution, fully compatible with TR4032B ribbons. Its robust design ensures consistent print quality for water-sensitive labels, ideal for medium-volume production.
Specifications
Category | Parameter | Value | Test Method |
Material Structure | Face Material | White Water-Sensitive Paper | - |
Thickness (Face) | 150±3 μm | - | |
Adhesive | Acrylic | - | |
Adhesive Thickness | 20±2 μm | - | |
Release Liner | PET (Polyester Film) | - | |
Release Liner Thickness | 36±2 μm | - | |
Initial Tack (Adhesion) | #9 (Rolling Ball Method) | FTM 8 Stickiness | |
Peel Strength | ≥800 g/25.4 mm | FTM 1/180° Peel Test | |
Holding Power | ≥24 hours | - | |
Functional Properties | Moisture Reaction | White → Red (Irreversible) | - |
Printing Compatibility | Thermotransfer, Offset, Flexography | - | |
Die-Cutting Performance | High-speed rotary die-cutting | - | |
Storage Conditions | Shelf Life | 1 year (24°C, 50% RH) | - |
