Overview

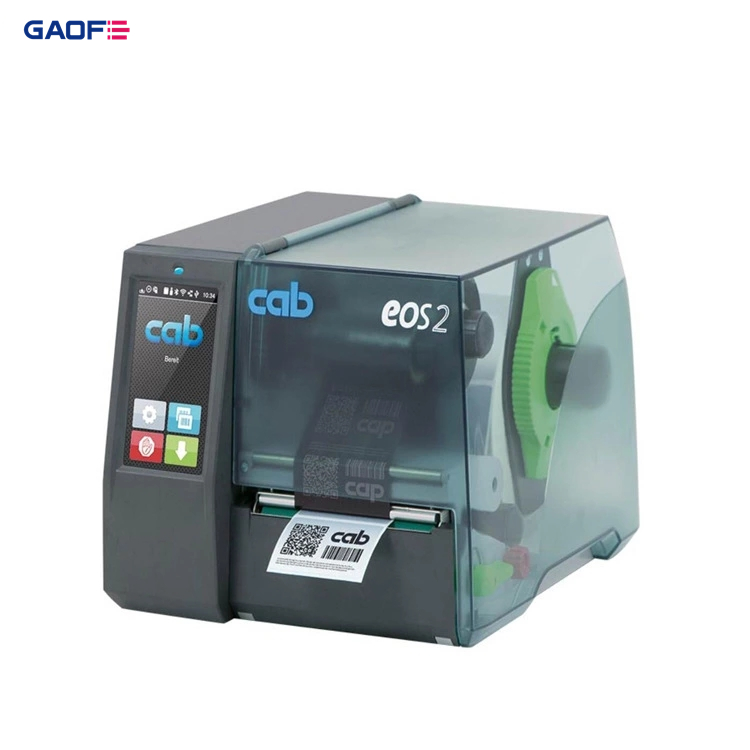

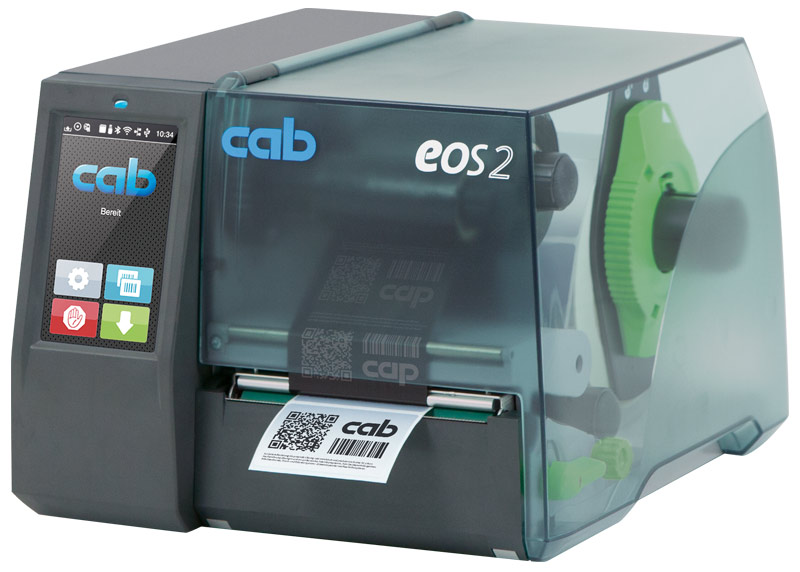

The CAB EOS2 Industrial Label Printer is a robust, high-performance printing solution designed for demanding industrial environments. It supports thermal transfer and direct thermal printing, making it ideal for labels, shrink tubes, textile tapes, and more. With 203dpi and 300dpi resolution options, it delivers crisp barcodes, text, and graphics.
Key Advantages:
✔ Compatible with shrink tubes, textiles, plastics, and synthetic materials

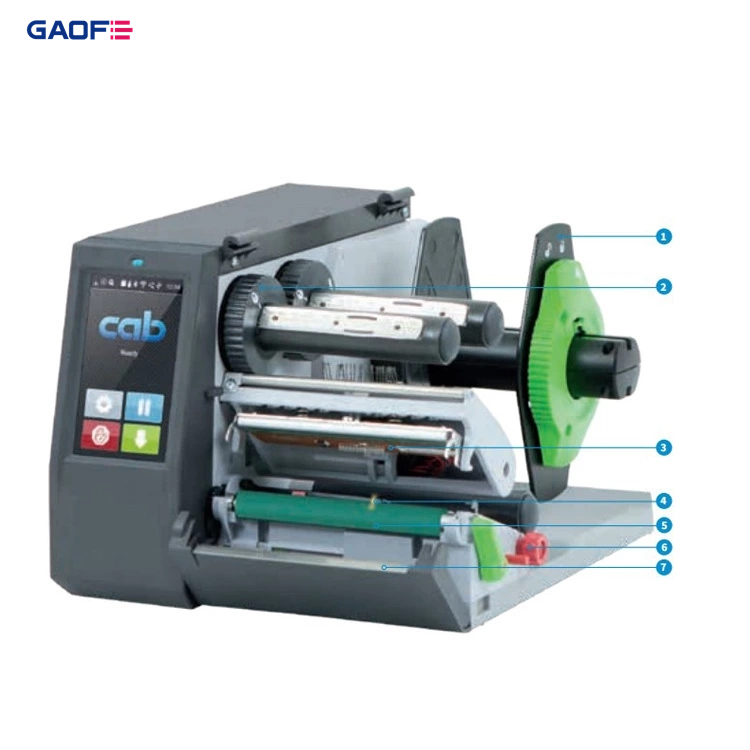

✔ Modular design – easy printhead & roller replacement
✔ Mobile version (EOS2 Mobile) available for battery-powered operation
Features
1. High Compatibility
Materials: PET, PE, PP, PVC, shrink tubes, Tyvek, cardboard (0.05–0.6mm thickness)
Label width: 10–116mm (single/multi-lane)
2. Smart Operation
4.3" color touchscreen with real-time status monitoring (ribbon low, label end, etc.)
Auto-centering roll holder for quick material loading
3. Industrial Durability
4. Connectivity & Expansion

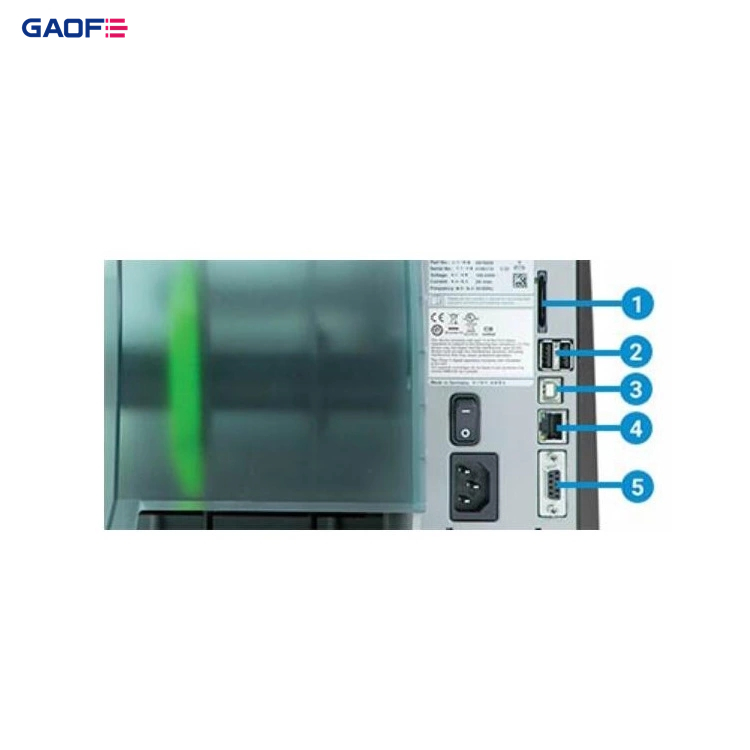

Interfaces: USB, Bluetooth, Wi-Fi, Ethernet, RS232
SD card slot for standalone label storage & printing
Applications
Industries:
Electronics Manufacturing – PCB labels, shrink tube marking
Automotive – High-temperature-resistant part labels
Warehousing & Logistics – Shelf tags, textile bag printing
Agriculture – Outdoor equipment labeling (mobile version)
Use Cases:
✔ Batch/date code printing in production
✔ On-demand label updates in warehouses
✔ Mobile printing in field operations (EOS2 Mobile + battery pack)
Optimal Printing Solutions
1. Recommended Ribbons
| Material Type | Recommended Ribbon | Key Benefit |
| Shrink Tubes / Plastics | TR4031 Resin Ribbon
| Chemical & abrasion resistance |
| Textile Labels | TR4030A Special cloth label ribbon | High adhesion, washable |
| Paper Labels | TR4010 Wax Ribbon | Cost-effective, sharp print quality |
2. Recommended Labels
Other Options
Accessories:

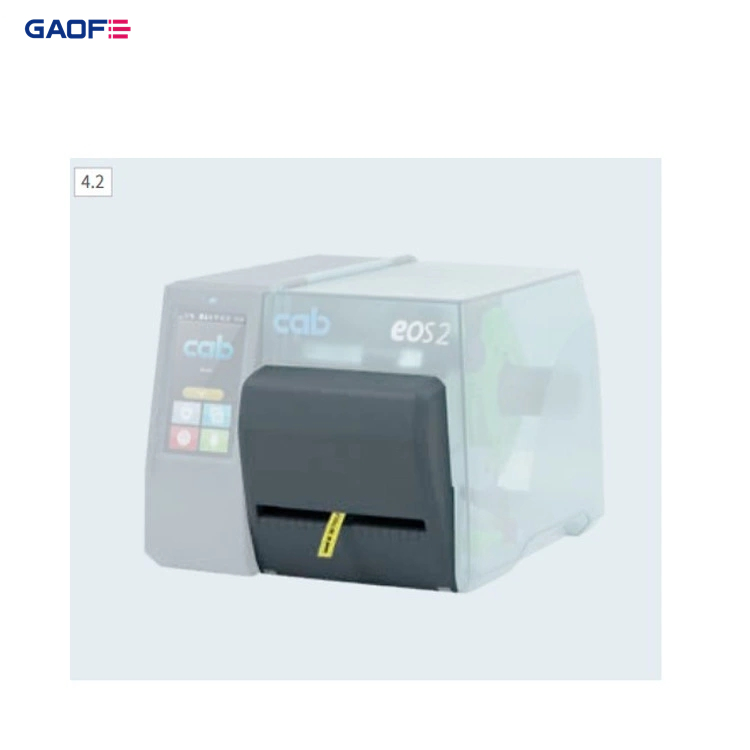

External cutter (for continuous shrink tube cutting)
Unwinder (supports large rolls up to 390mm diameter)
USB Bluetooth adapter (wireless barcode scanner pairing)
Software:
Specifications
| Parameter | Details |
| Print Resolution | 203dpi / 300dpi |
| Max Print Width | 108mm (203dpi) / 105.7mm (300dpi) |
| Max Roll Diameter | 152mm (standard) |
| Power Supply | 100–240V AC (24V DC for mobile) |
| Weight | 4.5kg |
| Certifications | CE, FCC, cULus, ISO 15426 (barcode quality) |
