Bottle Arranging and Round Bottle Labeling Machine

Application Cases

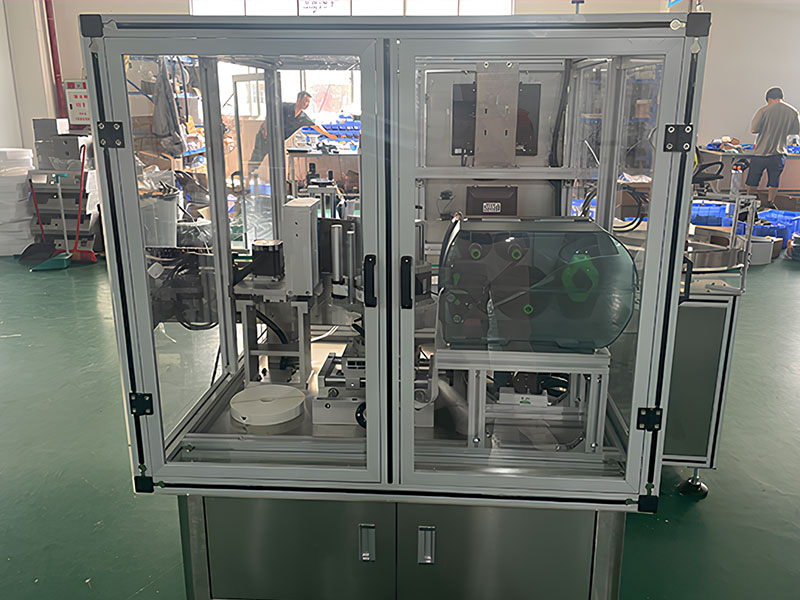

Bottle-Unscrambler-+-Round-Bottle-Labeling-Machine.1

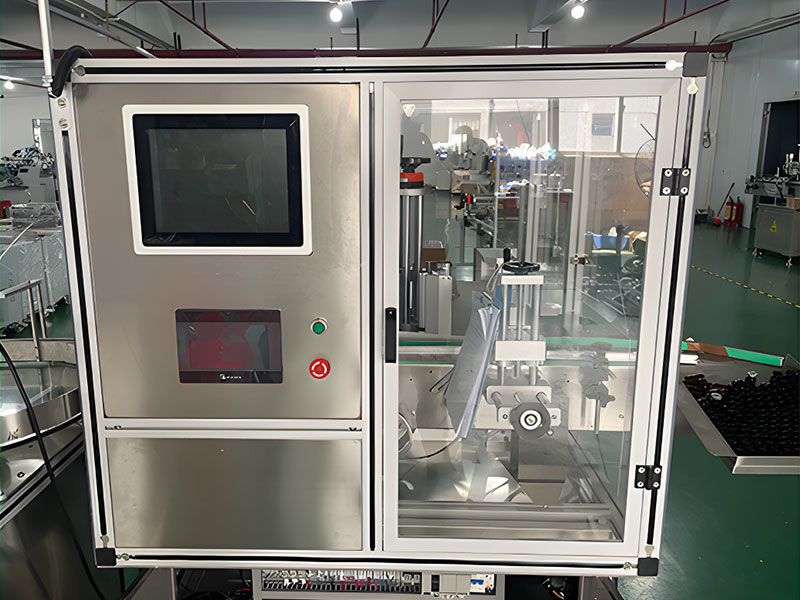

Bottle-Unscrambler-+-Round-Bottle-Labeling-Machine.2

Bottle-Unscrambler-+-Round-Bottle-Labeling-Machine.3

Project Background

This machine addresses the issues of slow labeling speed, inaccurate labeling, and high costs associated with manual small medicine bottle labeling for enterprises. The bottle arranging and round bottle labeling machine effectively meets customers' needs. To maintain an edge in the fierce market competition, enterprises need to enhance production efficiency and product quality to reduce costs, improve the overall product quality, and accommodate the special customized requirements of different customers.

Industry Pain Points

Inefficiency: Manual labeling is usually slower than automated labeling machines, which is particularly noticeable in large-scale production, which may lead to low production efficiency. The accuracy is unstable, and with the increase in labor costs, long-term reliance on manual labeling may increase the operating costs of enterprises.

Solution

Labeling Process Analysis

Bottle Placement → 2. Bottle Arranging → 3. Bottle Separating → 4. Conveying → 5. Product Detection → 6. Labeling → 7. Label Pressing → 8. Bottle Collection

Applicable Product Dimensions (for round bottles)

Diameter: 20MM - 100MM

Height: 25MM - 230MM

Applicable Label Dimensions

Length: 20MM - 320MM

Width (backing paper width): 15MM - 175MM

Project Value

1. Reduce material waste: Automated equipment can reduce label waste and improve material utilization by accurately controlling the amount of labels used.

2. Support large-scale production: For products that require large-scale production, automated bottle unscrambling + round bottle labeling machines can meet the needs of mass production and ensure production efficiency and label quality.

3. Improve production efficiency Automated bottle unscrambling and labeling processes can significantly increase the speed of the production line.

SQUIX4 Barcode Printer

Model Parameter	Squix4
Paper Exit Direction	Left - hand
Printing Method: Thermal Transfer	Yes
Thermal Sensing Printing	No
Printing Resolution (dpi)	300, 600
Fastest Printing Speed (mm/s)	300, 150
Maximum Printing Width (mm)	105.7
Printing Range: Distance to Label Edge (mm)	2
Label
Paper, Hangtag Cardboard, Plastic Materials (PET, PE, PP, PI, PVC, PUAcrylate, Tyvec)	Yes
Prefabricated Heat - Shrinkable Tubing	No
Paper Roll (Roll - type, Fold - type)	Yes
Maximum Outer Diameter (mm)	205
Core Diameter (mm)	38.1 - 76
Rewind Direction	Outer - winding or Inner - winding
Label Width (mm)	20 - 116
Minimum Height (without Label Liner Retraction) (mm)	4
(with Label Liner Retraction) (mm)	6
(with Label Liner Retraction during Peeling) (mm)	6
Thickness (mm)	0.03 - 0.6
Label Liner Width (mm)	24 - 120
